A cobblestone crusher is specifically designed to break down tough, smooth river rocks that challenge ordinary crushers. Its reinforced construction and specialized crushing action
turn stubborn cobblestones into uniform gravel with less wear and downtime.
Understanding Cobblestone
Cobblestone is a naturally occurring material shaped by water erosion over time, resulting in smooth, rounded stones. These stones are typically found in riverbeds, streams, and other water bodies. Due to their durability, versatility, and aesthetic appeal, cobblestones are widely used in various industries, particularly in construction and landscaping.
Characteristics of Cobblestone
- Natural Origin: Cobblestones are primarily made from durable materials like granite, basalt, and other hard rocks, shaped by water into smooth, rounded forms.
- Durability: Known for their resilience, cobblestones can withstand wear and tear, making them ideal for high-traffic areas and outdoor applications.
- Size and Shape: Cobblestones vary in size, from small pebbles to larger rocks, and their smooth, rounded shape is a result of natural water erosion.
Products Derived from Cobblestone
- Crushed Cobblestone Aggregate: Cobblestones are crushed into smaller sizes for use in concrete production, road construction, and drainage systems.
- Decorative Stones: Whole or crushed cobblestones are used in landscaping projects, including garden paths, driveways, and patios, for aesthetic purposes.
- Paving Stones: Cobblestone pavers are commonly used for creating durable road surfaces and walkways.
Applications of Cobblestone
- Landscaping: Cobblestones are frequently used in garden paths, decorative borders, and water features due to their natural beauty and smooth texture.
- Construction: In construction, crushed cobblestone serves as a strong aggregate for concrete, providing durability for buildings, bridges, and pavements.
- Paving and Road Construction: Cobblestone pavers are still widely used for roads, driveways, and walkways because of their ability to endure high foot and vehicle traffic.
- Drainage: Cobblestones’ porous nature makes them useful in drainage systems, allowing water to flow through easily.
Types of Cobblestone Crusher You Can Get
Here shows you some individual cobblestone crushers. These types can be combined with one another to product the final crushed cobble stone products.
Jaw Crushers – The Essential First Stage
Jaw crushers provide the primary crushing solution for raw cobblestones, featuring V-shaped tooth plates that securely grip smooth-surfaced river rocks. The jaw crushers deliver consistent 100-350mm output even under extreme abrasion, thanks to hydraulic wedge adjustment that compensates for wear in real time.
Secondary Crushing Solutions

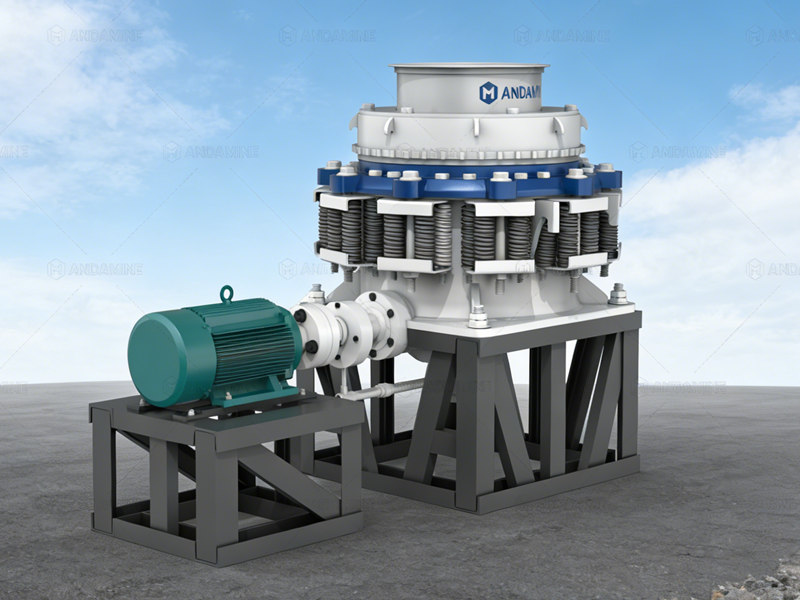

Cone Crushers – Precision for Hard Cobblestones
Cone crushers excel in processing granite or quartzite cobblestones using interparticle compression, where rocks crush each other to reduce wear part consumption by 40%. The cone crushers produce uniformly cubic aggregates (10-45mm) with ≤10% flakiness, meeting strict concrete and asphalt standards.

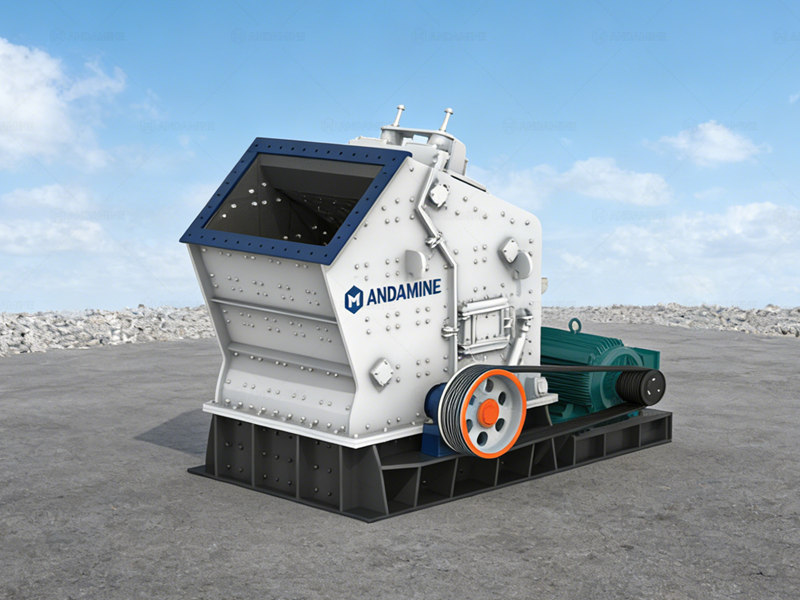

Impact Crushers – Shaping Softer Cobbles
Impact crushers efficiently handle medium-hardness cobblestones, utilizing high-speed hammers to fracture rocks against aprons for improved particle shape. The impact crushers deliver 5-50mm output ideal for construction applications, though harder cobbles (>250 MPa) may accelerate wear part replacement.
Sand Making & Washing Systems

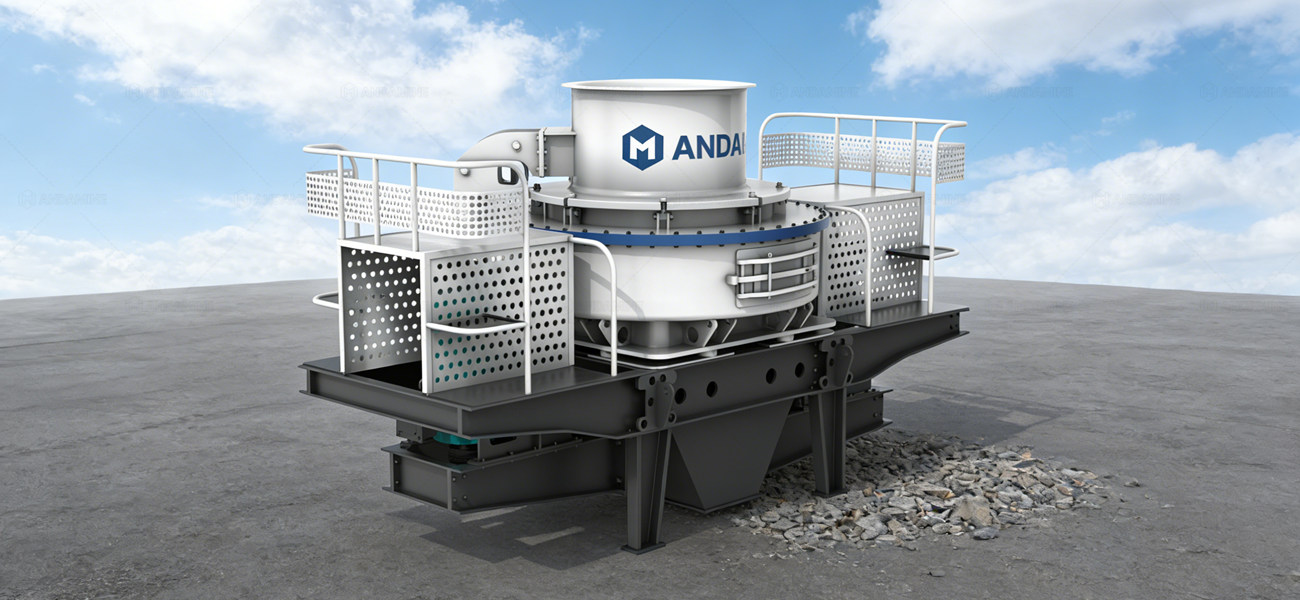

VSI Crushers – Engineered Sand Production
VSI crushers transform crushed cobbles into high-quality manufactured sand through rock-on-rock or rock-on-iron crushing, adjustable for optimal grain shape. The VSI crushers produce 0-5mm sand with controlled fines content, achieving necessary roundness for premium concrete mixes.
Sand Washers – Purifying Cobblestone Sand
Spiral sand washers remove clay and impurities through continuous scrubbing and dewatering, ideal for high-capacity sand production.

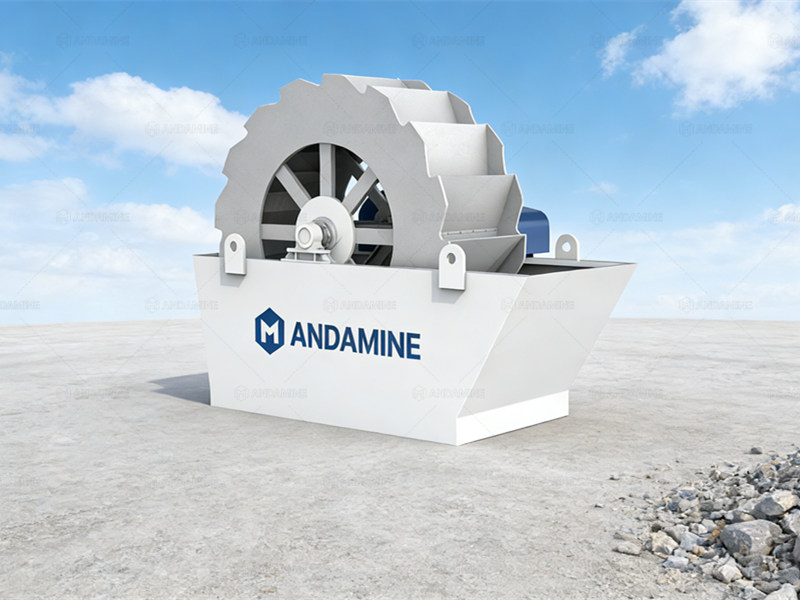

Bucket wheel washers recover ultra-fine particles (<0.075mm) with minimal water consumption, maximizing yield from valuable cobblestone resources.

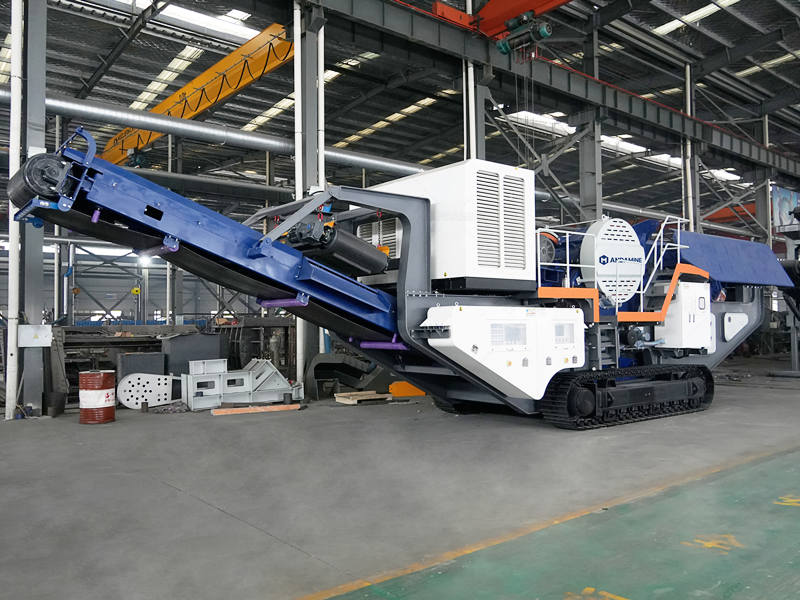

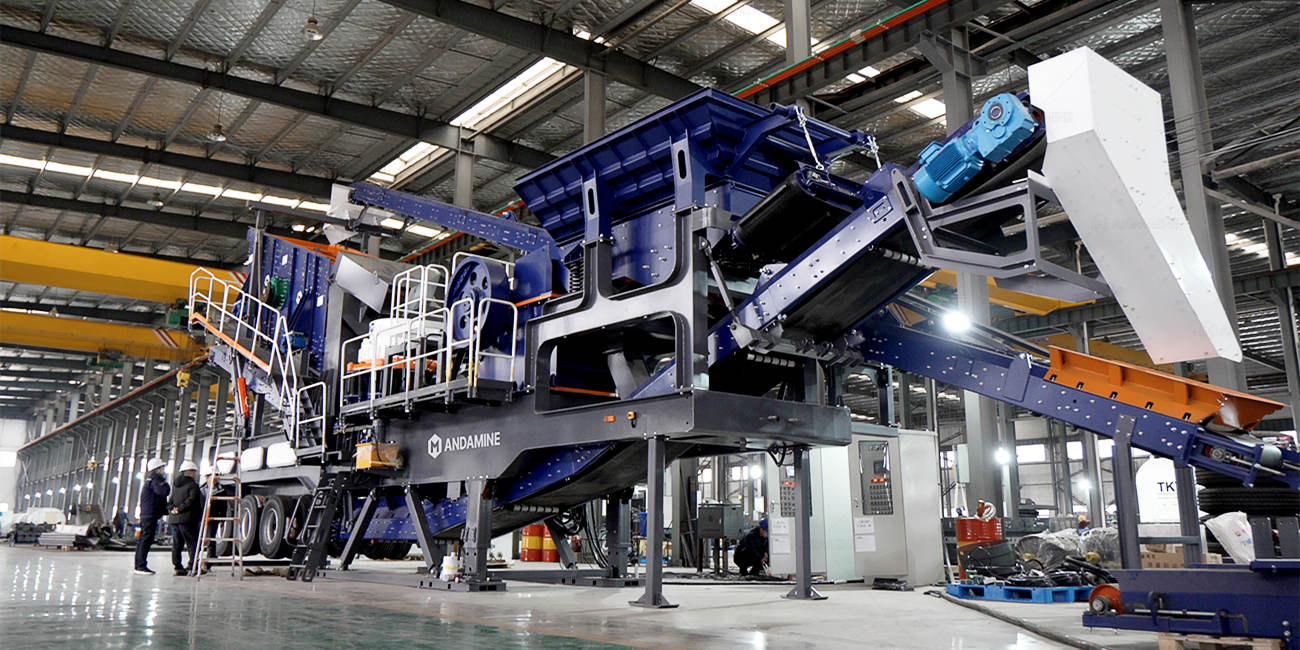

Andamine All-in-One Mobile Cobblestone Crushing Solution
Andamine provides two main types of all-in-one mobile cobble stone crusher plants. Please go on reading to help you find the suitable one.
Why Mobile Crushing Dominates Cobblestone Operations
Cobblestones (260+ MPa hardness, 12-18% quartz content) demand specialized solutions. Traditional setups fail with:
- Remote Riverbed Access: Narrow paths and unstable terrain
- Rapid Deposit Relocation: Needing to chase cobble sources along riverbanks
- Accelerated Wear Costs: Quartz-rich rocks devour standard components 3× faster
Andamine’s integrated systems solve this with tire-mounted mobility + cobble-optimized engineering – operational in 15 minutes, zero foundation required.
Two Precision-Tuned Cobblestone Crushers
APY4-S 4-in-1 System – For High-Grade Aggregates
Configuration: Feeder, Jaw Crusher, Cone Crusher, Screen
Cobblestone-Specific Innovations:
- Anti-Slip Jaw Plates: V-tooth design grips smooth cobbles, eliminating roll-off
- Layer-Crushing Cone: Rocks crush each other (not metal), slashing wear costs 40%
- ROSTA Elastic Supports: Replaces steel springs, reducing startup/shutdown vibration by 60%
- Self-Cleaning Magnet: Removes tramp iron automatically, preventing cone crusher damage
- Modular Secondary Crusher: Swap between cone/impact crusher in 2 hours for variable hardness cobbles
Smart Control Advantage :
- One-button startup via PLC touchscreen or physical controls
- IoT remote monitoring (4G/WiFi/cable) with auto-maintenance alerts
- Intelligent feeder with speed adjustment for consistent cobble flow
Cobble Crushing Performance:
- Processes 16-40 t/h of river rock
- Handles cobbles up to 625mm diameter
- Produces 0-5mm, 5-10mm, 10-20mm graded aggregates
- Relocates in <30 minutes with tri-axle chassis + ski plate stability
3-in-1 System – Rapid-Deployment Eco Warrior
Configuration: Feeder, Impact Crusher, Screen
Built for Cobble Challenges:
- Heavy-Duty Rotor: Manganese alloy impact plates shatter 260MPa cobbles
- Slag-Discharge Drum: Ejects oversized rocks before belt damage
- Dust-Tight Seals: Dual barriers block quartz dust, extending bearing life 2.1×
- Energy-Smart Motors: 30% lower power consumption vs competitors
Eco-Enhanced Cobble Processing:
- Full Dust Control Suite (Optional): Fog cannons at feed point， Telescopic dust hoods at discharge， Negative-pressure dust extraction
- Belt Protection System: Shock-absorbing bed resists cobble impact, Slag-discharge drum prevents belt cuts
Cobble Crushing Metrics:
- Throughput: 50-350 t/h (adjustable for cobble density)
- Output range: 5-180mm precision grading
- Fuel efficiency: 30% savings with hybrid power option
Andamine’s Cobble-Crushing Edge
Mobility That Conquers River Terrain
- Zero Assembly: Unload → Push button → Crush (vs. 2-day fixed plant setup)
- Wet Ground Mastery: 420mm clearance + ski plates prevent sinking
- Permit-Free Transport: Compact 15.5×2.8×4.2m folded dimensions
Unmatched Wear Resistance
- Jaw Plates: 18% chrome steel with carbide teeth (10,000+ hour cobble life)
- Impact Blows: Deep-cryo treated MnCr alloy – 30% longer than industry standard
- Dust-Proof Bearings: Triple-labyrinth seals block silt ingress
How to Find a Cobble Crusher Suits Your Project
Many customers have the question of how to get cobble crusher suitable for their project. Selecting the right cobblestone crusher requires matching equipment capabilities to your project’s unique demands. Follow this field-tested framework we provide to make an informed decision:
Evaluate Mobility Requirements
Choose mobile/tire-mounted mobile crusher plants if your project involves multiple sites along riverbanks or requires chasing cobble deposits downstream. These units relocate in under 30 minutes without disassembly.
Consider fixed plants only for large-volume, single-location quarries with stable cobble sources.
Match Capacity to Production Goals
- For small-scale operations (＜50 t/h), prioritize compact units like the Andamine Tri-System (50-350 t/h adjustable).
- For high-output projects (＞100 t/h), opt for multi-stage setups like the APY4-S Quad System with integrated screening.
Verify Cobble Feed Size Compatibility
Crushers must ingest your largest cobbles:
- Standard river cobbles (64-256mm): Ensure primary crusher accepts ≥300mm feed (e.g., APJ-4060E jaw crusher handles 625mm).
- Oversize boulders (＞300mm): Require pre-screening or hydraulic breakers.
Define Output Gradation Needs
- Road base/landscaping: Allow 0-40mm mixed sizes (use impact crushers).
- High-grade concrete: Demand 5-10mm or 10-20mm cubic aggregates (cone crushers produce superior shape).
Test Material Hardness & Abrasiveness
Confirm crusher components withstand:
- 260+ MPa compressive strength (standard for granite cobbles).
- 12-18% quartz content (prioritize chrome-carbide liners).
- Tip: Bring cobble samples to manufacturers for crush tests.
Analyze Site Constraints
- Space-limited riverbanks: Select narrow-width units (＜3m transport width) with tri-axle chassis.
- Wet terrain: Require ski plate supports and ＞400mm ground clearance.
- Dust-sensitive areas: Mandate sealed chambers + optional fog cannons.
Budget for Total Ownership Costs
- Upfront investment: Mobile units cost 20-30% more but save 50% on foundations/relocation.
- Wear part economy: Prioritize crushers with: Interparticle crushing (reduces liner wear 40%). Standardized replaceable components.
- Energy efficiency: Look for 30% savings from optimized drives (e.g., Andamine’s smart motors).
Demand Cobble-Specific Features
- Anti-roll jaw plates to grip smooth stones.
- Automatic tramp iron ejection protecting cones from riverbed debris.
- IoT remote monitoring for real-time wear tracking.
- Modular secondary crushers to switch between cone/impact for mixed deposits.
Verify After-Sales Support
Ensure local technicians can service:
- Cobble-grade wear parts inventory.
- River site mobilization support.
- Request documented case studies of cobble projects.
How to Judge the Strength of a Manufacturer
Here shows you some tips to judge the strength of a cobblestone crusher manufacturer.
Cobblestone-Specific Engineering Credentials
Look for patents targeting river rock challenges, such as anti-slip jaw plates or quartz-abrasion-resistant alloys. Strong manufacturers operate dedicated abrasion labs simulating 260+ MPa cobble impacts.
Material Science Proof for Wear Resistance
Demand metallurgical reports for critical components. Jaw plates/concaves should specify ≥18% chromium content with carbide infusion—essential for >10,000-hour service life in quartzite cobblestones. Confirm proprietary hardening technologies (e.g., deep cryogenic treatment) that reduce wear rates by ≥30% versus standard parts.

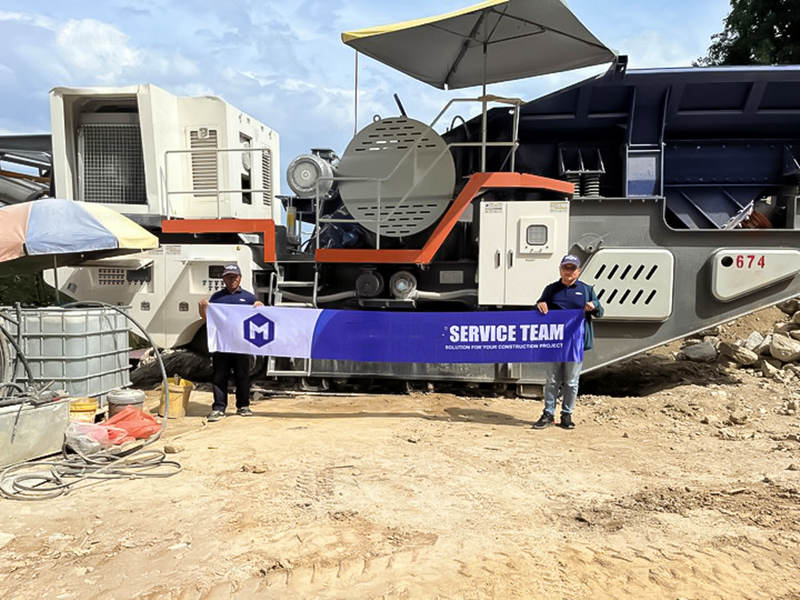

Global Support Network for Cobblestone Operations
Prioritize manufacturers with field engineers in cobble-rich regions (e.g., river deltas, glacial deposits). Local presence enables rapid response to site-specific wear issues.
Stockpiles of cobble-optimized wear parts (cone mantles, impact hammers) within 500km of your project prevent months of downtime.
Performance Data from Real Cobblestone Projects
Request case studies with identical material properties: Granite/river cobbles at 240-300 MPa hardness, not generic “hard rock” claims.
Scrutinize output metrics: ≤12% flakiness in final aggregate and ≤0.35 kW/t energy consumption prove cobble-adapted crushing efficiency.
Customization Capability for Your Cobble Profile
Assess flexibility in crusher configuration: Adjustable stroke cones for 64-256mm cobbles or impact crushers with variable rotor speeds for mixed-hardness feeds.
Require on-site material testing: Reputable manufacturers conduct trial crushing using your cobble samples before design finalization.
Tomorrow’s most profitable quarries will be built by those who act now—transforming rugged cobblestone into premium aggregates with Andamine’s high quality cobblestone crushers. Engineered to conquer 260+ MPa hardness and outlast abrasive quartz content, Andamine solutions deliver 30% higher profitability through fuel-efficient operation, minimal relocation downtime, and wear components that endure twice the industry standard.
