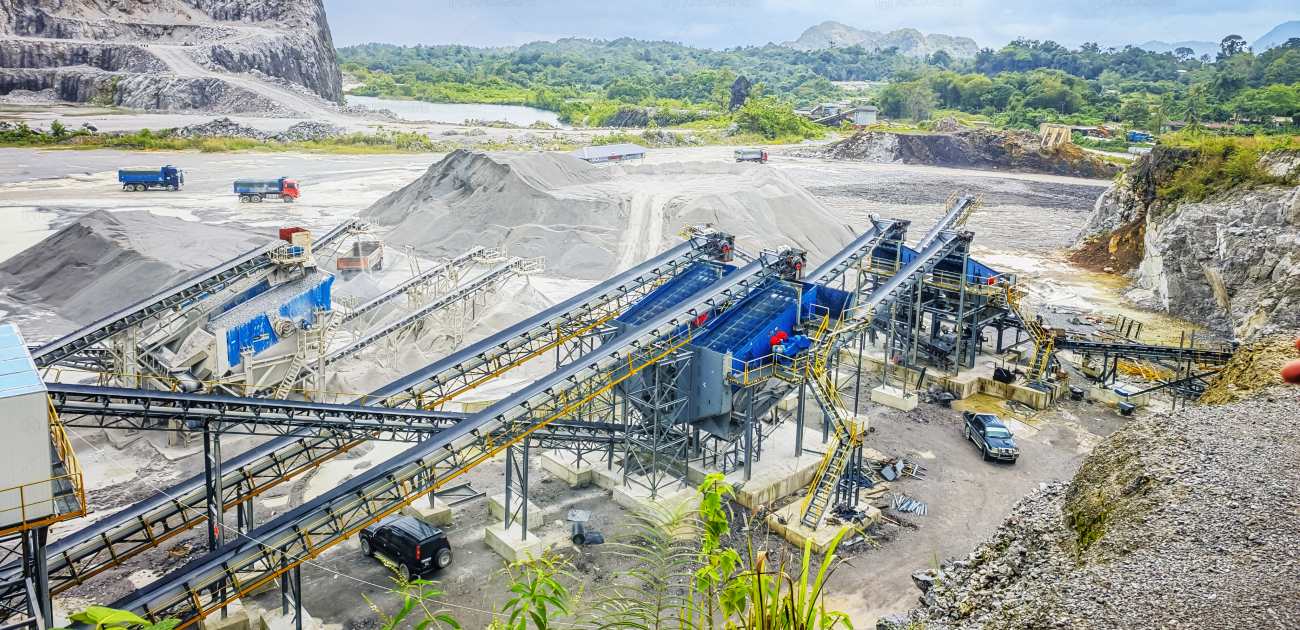

Stone crusher plant prices typically range from $10,000 to over $2,000,000, depending mainly on plant type, production capacity, and configuration level. In general, more advanced automation systems and higher-output designs significantly increase the overall investment. This article breaks down stone crusher plant pricing in detail, including key cost factors, total investment breakdown, ROI potential, and how to choose the right solution for your project.
How Much Does a Stone Crusher Plant Cost?
Stone crusher plant prices vary widely depending on project scale and equipment configuration. The table below provides a general overview of typical investment ranges for different plant sizes.
| Plant Scale | Price Range |
|---|---|
| Small Plant | $10,000 – $80,000 |
| Medium Plant | $80,000 – $500,000 |
| Large Plant | $500,000 – $2,000,000+ |
Stone Crushing Plant Price by Type
Stone crushing plant prices differ significantly based on plant type and configuration. Each type is designed for different production needs, investment levels, and project conditions. Below is a clear breakdown of mobile and stationary crushing plant price ranges.

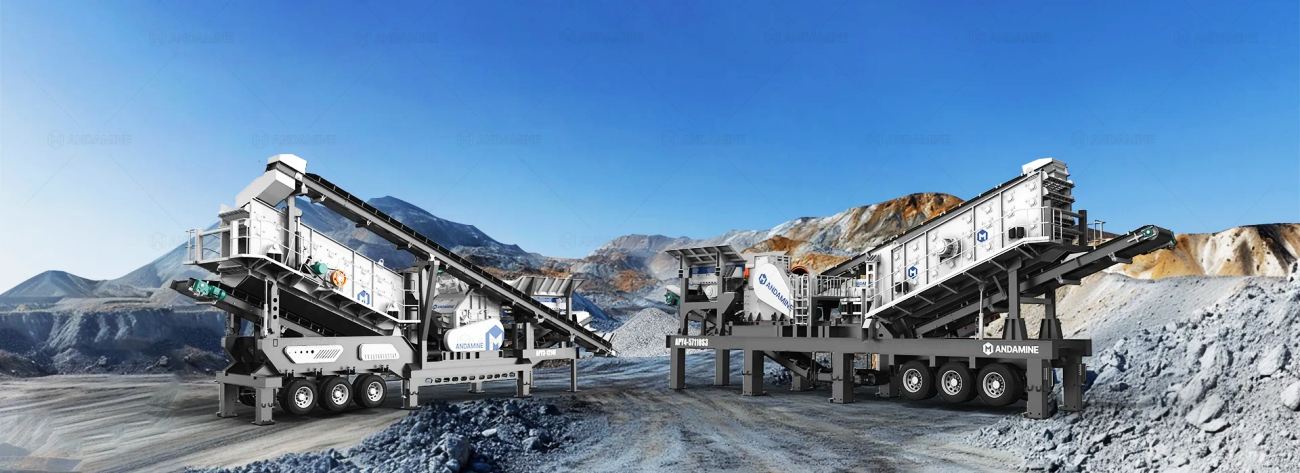

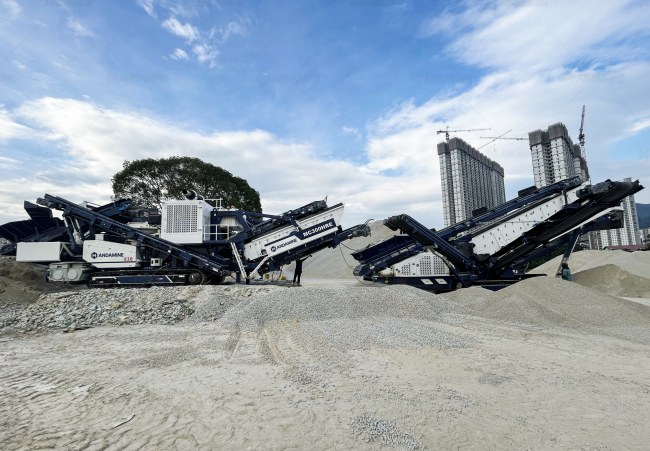

Mobile Crusher Plant Price Range
Mobile crusher plants generally require a higher initial investment than some stationary plants, but they can save costs in the long run. Thanks to their mobility, transportation, foundation, and installation expenses are significantly reduced. Our mobile crushers are mainly available in 2-in-1, 3-in-1, and 4-in-1 configurations, offering greater flexibility, higher productivity, and faster returns on investment. Below are the approximate price ranges for your reference.

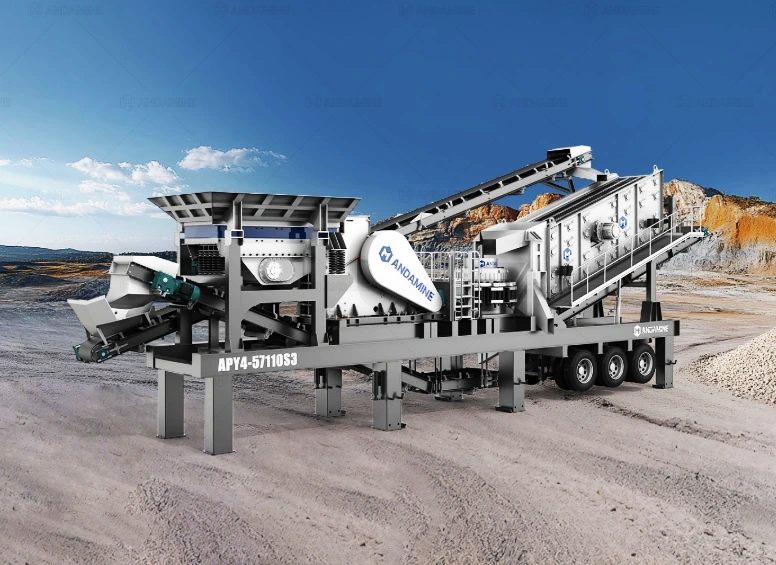

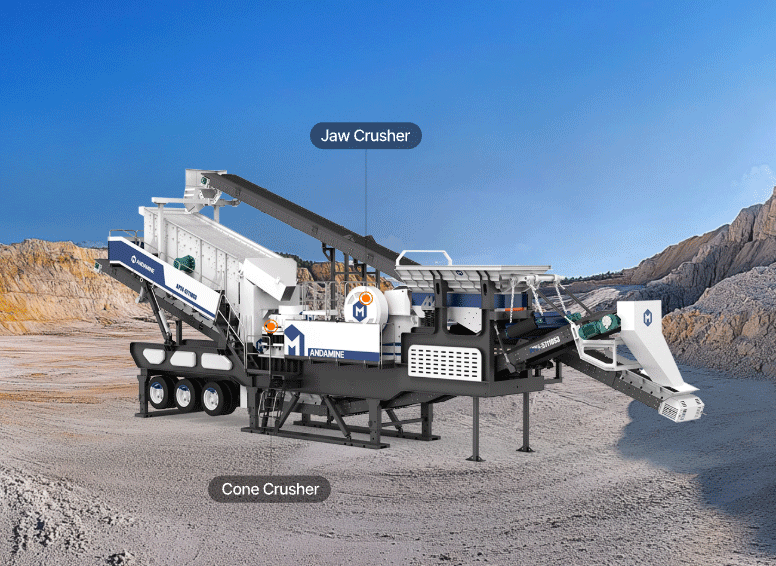

APY4 Wheel-mounted 4-in-1 Mobile Crusher Plant
One-click start, Intelligent operation, Efficient production
- Price Starting at: $100,000
- Capacity: 30-200T/H
- Feeder Size(mm): ＜500
- Finial Products Size: 5-80mm
- Configuration: Vibrating feeder + Primary jaw crusher + Adjustable Secondary Crusher(cone crusher, impact crusher, or fine jaw crusher) + Vibrating screening
- Features and Advantages: Modular structure design, fast installation & commissioning, quick relocation & transition and suitable for flat-road transport.

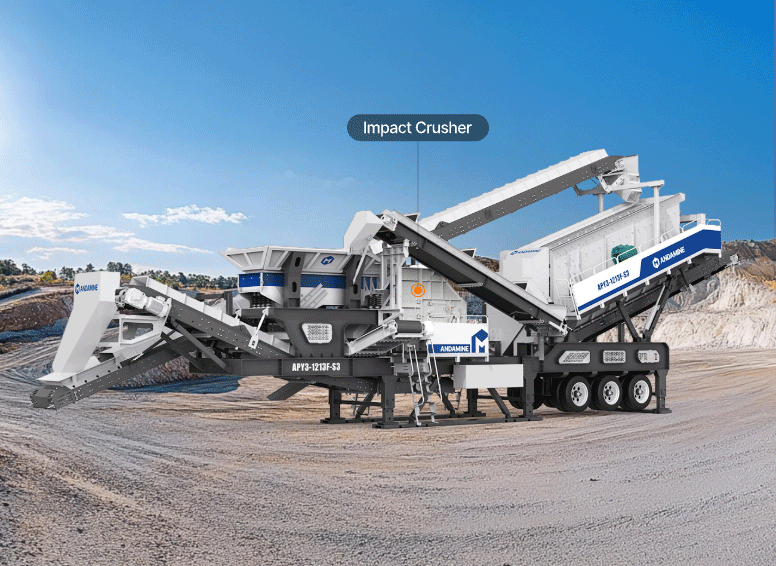

APY3-F 3-in-1 Mobile Impact Crusher
The First Choice for Solid Waste Crushing
- Price Range: $130,000-$200,000 or more
- Capacity: 50-350T/H
- Feeder Size(mm): ＜700
- Output Size(mm): 5-180
- Configuration: Vibrating feeder + Impact crusher + Vibrating screening
- Features and Advantages: heavy-duty rotor crushing, slag discharge protection system, belt protection design, dust-proof sealing system, high crushing ratio, good particle shape and energy-saving (-30% power).

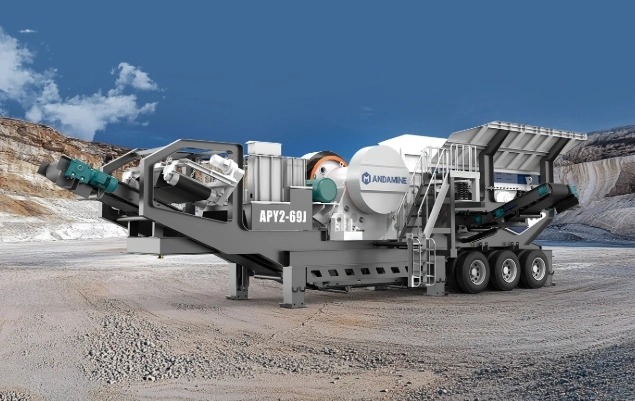

APY2 Mobile 2-in-1 Crushers
- Price Range: $100,000-$200,000 or more
- Capacity: 30-200T/H
- Feeder Size(mm): ＜720
- Finial Products Size: 3-180mm
- Crushers: Available with jaw, cone, or impact crushers
- Features and Advantages: Standalone or combined operation, high efficiency for various materials, intelligent control system, easy operation and maintenance.

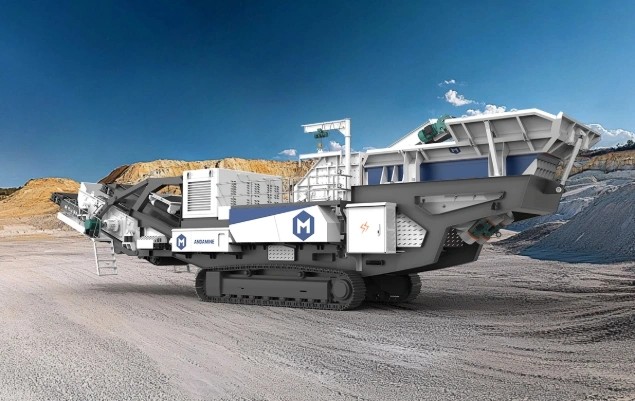

APYL Track-mounted Mobile Crushing Plants
- Price Starting at: $130,000
- Capacity: 80-450T/H
- Output Size(mm): 5-250
- Max. Feeder Size(mm): ＜700
- Features and Advantages: Heavy-duty crawler track system, excellent mobility on rough terrain, self-propelled, no foundation required, high stability under heavy-duty operation, reinforced structure for tough conditions, advanced control system for easy operation, reduced relocation and setup costs.

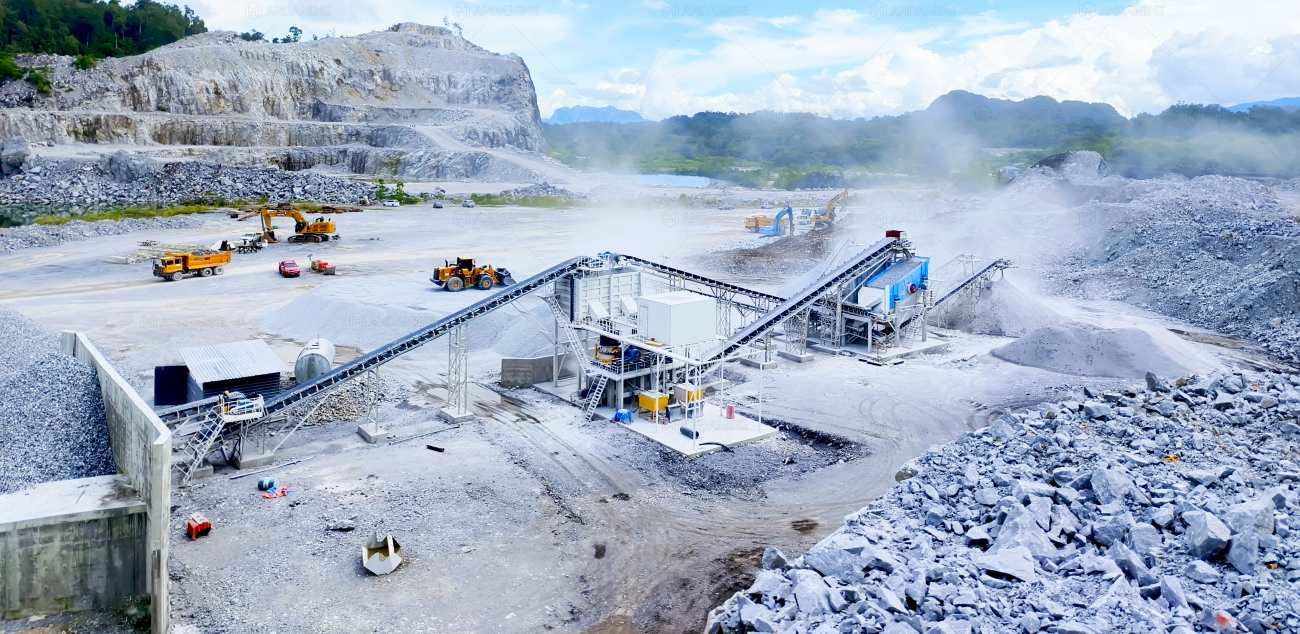

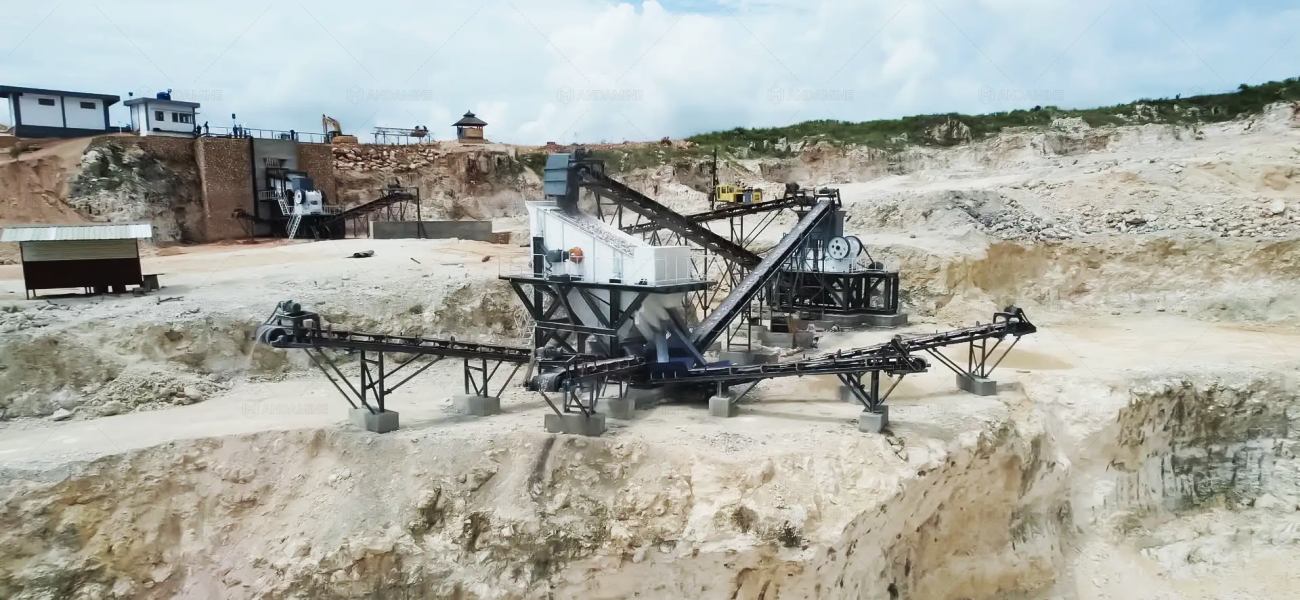

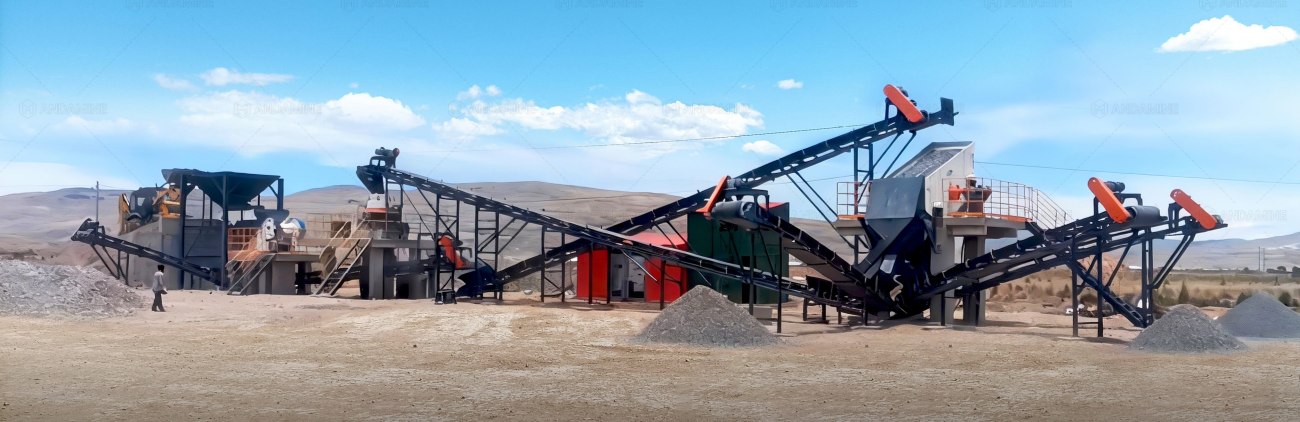

Stationary Crusher Plant Price Range
The price of a stationary crusher plant is not fixed, as it largely depends on the specific configuration selected for your project. Key factors affecting the cost include crusher type and quantity, plant capacity, feeding and screening equipment, conveyors, and automation level. Whether you need a simple two-stage setup or a complex multi-stage crushing line, customization plays a key role in determining the overall investment. Below are our crusher machine price ranges to help you plan your project budget.

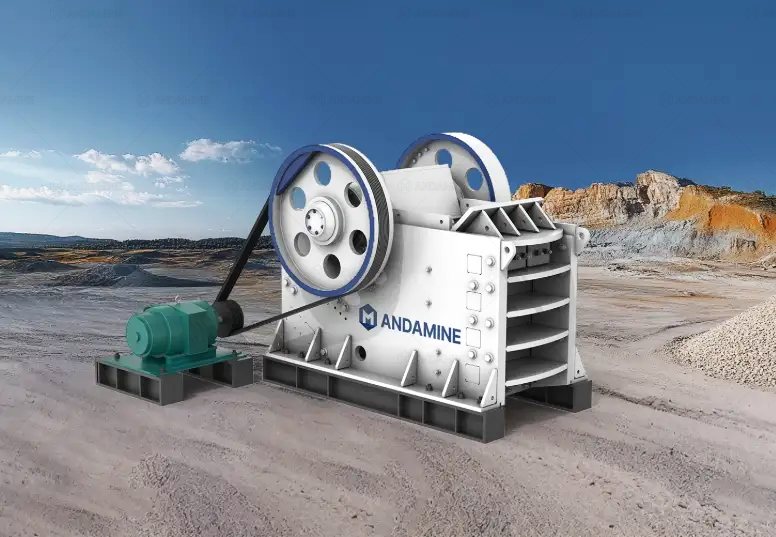

APJ Model Stone Jaw Crusher
- Price Range：$9,800-$210,000
- Capacity: 8-800T/H
- Max Feeding Size: 120mm-1000mm
- Motor Power: 5.5-250 kw

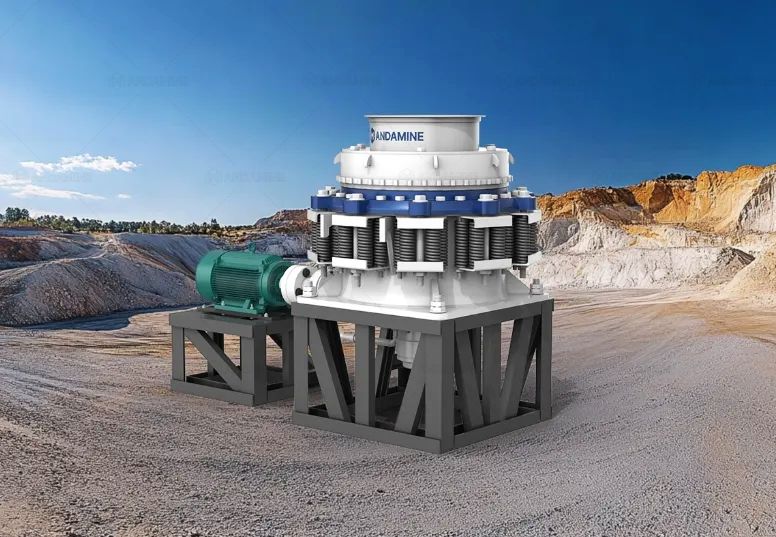

APC Cone Stone Crusher
- Price Range：$46,000-$450,000
- Capacity: 18-1200T/H
- Inlet Size(mm): 20-353
- Min. Output Size(mm): 3-64

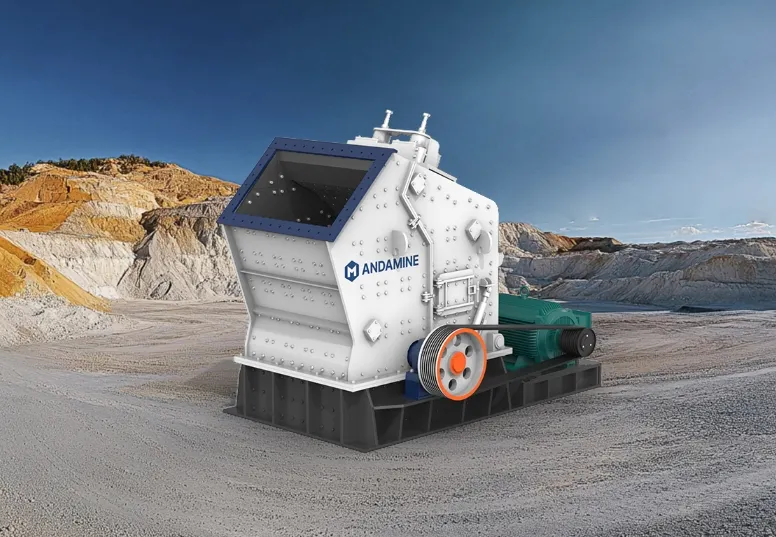

APF Impact Crusher Machine
- Price Range：$19,000-$140,000
- Capacity: 50-550T/H
- Inlet Size(mm): ≤900 mm
- Motor Power: 90-400 kw
Differences between Mobile and Stationary Crusher Plants
Mobile and stationary crusher plants are designed for different operating environments, resulting in clear differences in investment structure, operating efficiency, and project application.
 |
 |
 |
|---|
Investment Structure Difference
- Mobile crusher plants integrate crushing equipment, chassis, power system, and control system into a single unit. This high level of integration increases manufacturing complexity, resulting in a typically 10–30% higher upfront equipment cost compared with equivalent stationary configurations.
- Stationary plants have a lower equipment purchase cost, but require separate site preparation such as foundations, steel structures, and installation works.
Key insight: Mobile crushing plant cost is concentrated in equipment, while stationary unit cost is distributed between equipment and site preparation.
Operating Efficiency Difference
- Mobile crushers reduce the need for long-distance material transportation because crushing can be carried out directly at different job sites. In relocation-intensive projects, this can reduce logistics-related costs by approximately 10–40%, depending on site conditions. However, mobile units may have slightly higher fuel consumption and operational cost per ton due to their mobility system and self-powered operation.
- Stationary crusher plants are more suitable for continuous production environments. With stable power supply and optimized process layout, they generally achieve lower long-term cost per ton in large-scale operations.
Key insight: Mobile plant improves flexibility and transport efficiency; stationary system improves long-term production efficiency.
Project Suitability Difference
- Mobile crushing plants are best suited for projects that require frequent relocation or have dispersed job sites, such as road construction, demolition recycling, and short-term mining operations.
- Stationary crushing plants are more suitable for long-term, high-volume production scenarios such as quarries, mining operations, and commercial aggregate supply.
Key insight: The key factor is whether the project prioritizes mobility or stable continuous production.

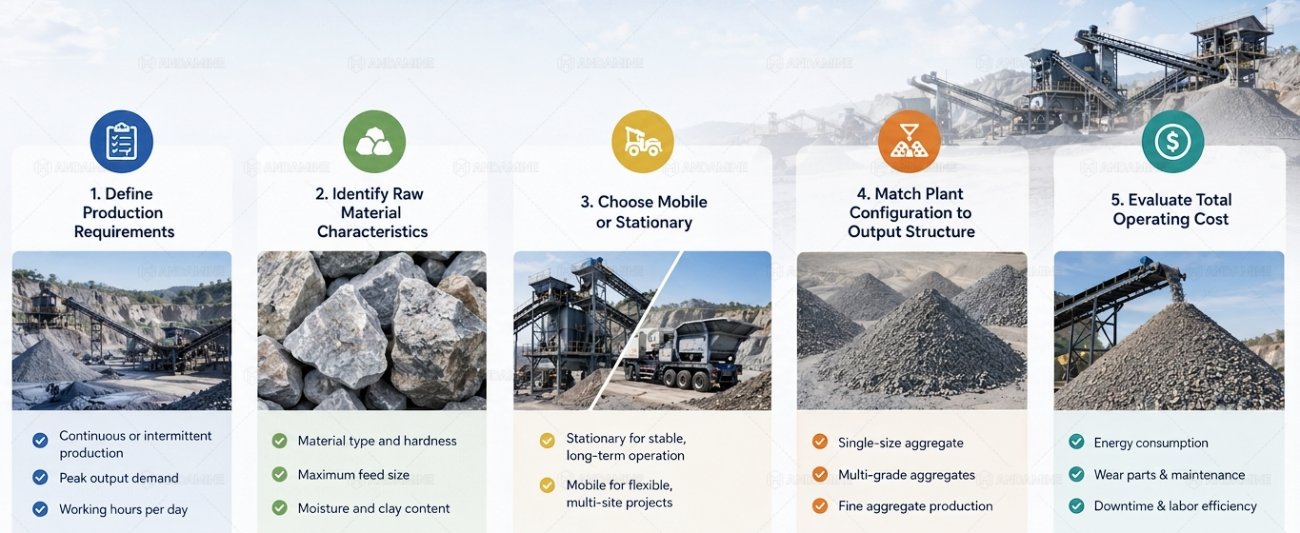

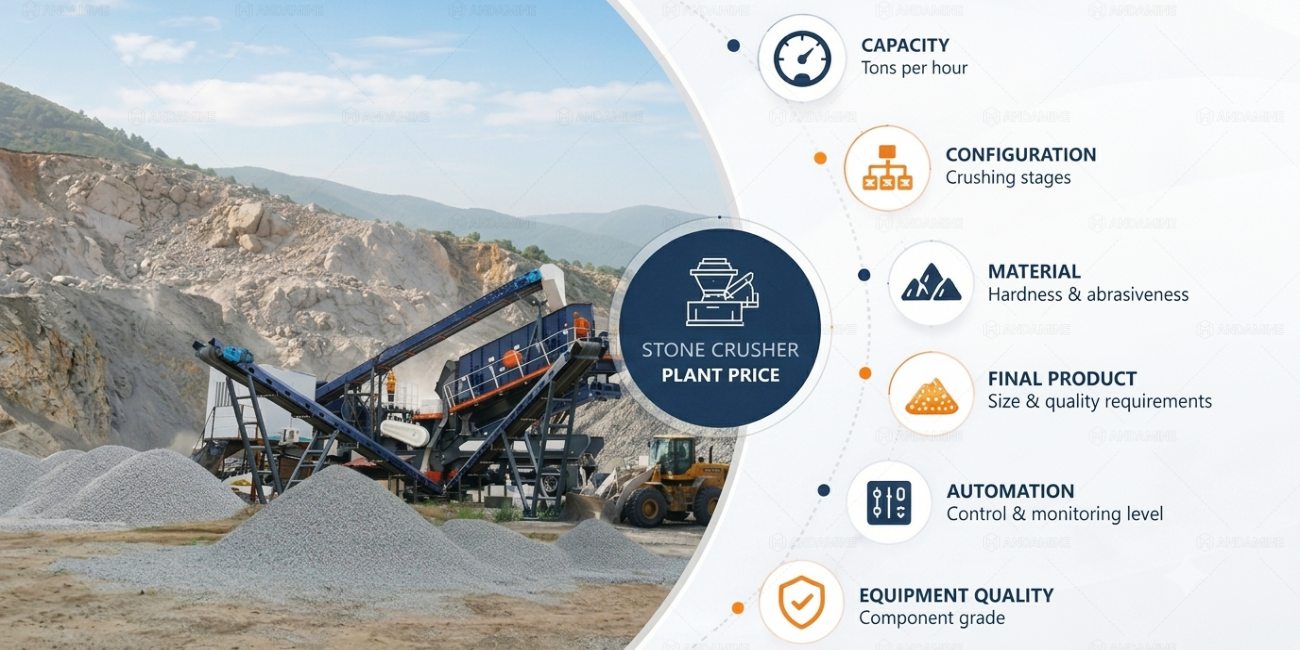

What Determines Stone Crusher Plant Price
Stone crusher plant prices vary significantly because each system is designed based on different production requirements, material conditions, and technical configurations. The final investment is determined by several key engineering factors that directly affect equipment size, system complexity, and performance level.
Production Capacity (Tons per Hour)
Higher production capacity increases crusher plant cost because it requires larger crushers, stronger frames, and more powerful motors to maintain stable continuous operation.
- Small-capacity plants are designed for lower output and simpler crushing tasks, which keeps equipment size and power requirements relatively low.
- Large-capacity plants require heavy-duty components and reinforced structures to handle continuous high-load production.
Higher production capacity usually requires a larger and more expensive crushing system, assuming similar configuration levels.
Crushing Process Configuration
The number of crushing stages directly affects system complexity and total investment.
- Basic configurations usually include only primary crushing, which requires fewer machines and simpler layouts.
- Multi-stage configurations include primary, secondary, and sometimes tertiary crushing, which require additional crushers and screening equipment.
More crushing stages improve product quality but significantly increase crushing equipment cost and system complexity.
Raw Material Characteristics
The physical properties of raw materials determine the type and durability level of required equipment.
- Hard rocks such as granite and basalt require heavy-duty crushers with wear-resistant parts to withstand high impact forces.
- Softer materials such as limestone can be processed with lighter equipment, reducing both cost and wear consumption.
Harder materials typically require stronger and more wear-resistant crushing equipment, which may increase overall cost.
Final Product Requirements
Different output specifications affect the design of screening and crushing systems.
- Single-size output requirements allow simpler screening setups with fewer processing stages.
- Multiple aggregate size requirements need more advanced vibrating screens and precise grading control systems.
Tighter product grading requirements usually lead to more complex plant configurations and higher crusher plant costs.
Automation and Control Level
Automation level has a direct impact on both equipment cost and operational efficiency.
- Basic systems rely on manual operation and simple control panels with lower initial investment.
- Advanced systems include PLC control, intelligent feeding, and centralized monitoring for improved automation and stability.
Higher automation increases upfront cost but reduces labor dependency and improves long-term efficiency.
Equipment Quality and Component Grade
The quality of core components strongly influences both price and long-term performance.
- High-quality crushers, motors, and bearings provide more stable operation and longer service life.
- Lower-grade components reduce initial cost but may increase maintenance frequency and downtime risk.
Higher-quality equipment usually requires higher upfront investment but reduces long-term operational and maintenance risks.

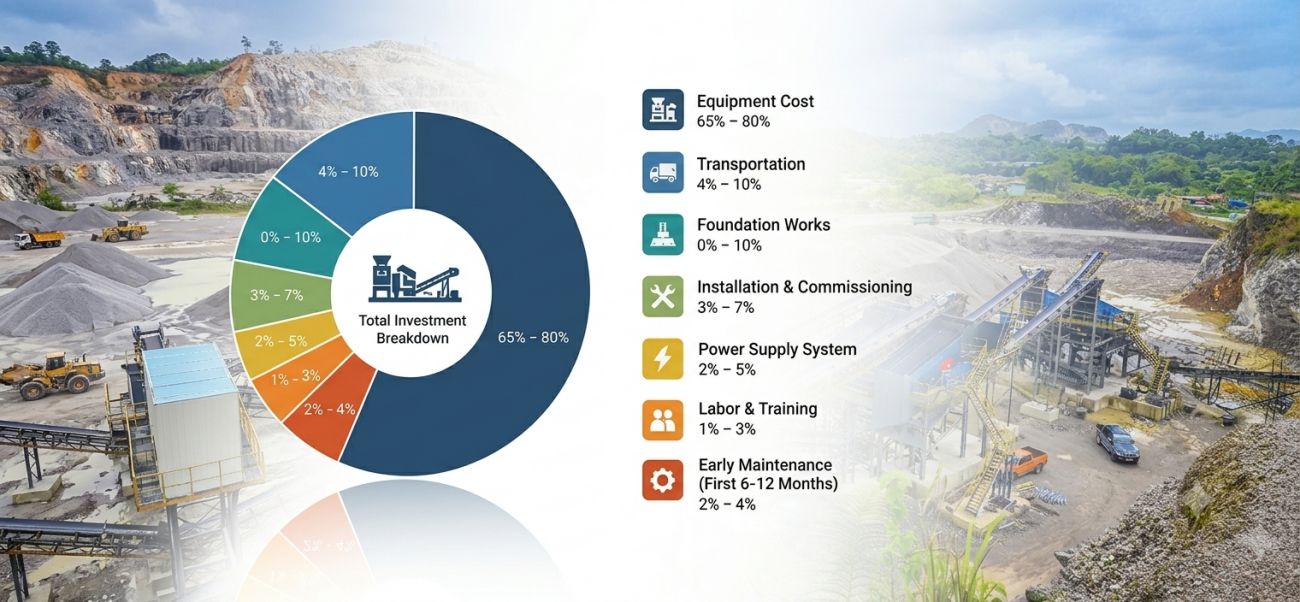

Total Cost Breakdown of a Stone Crusher Plant
A stone crusher plant project involves multiple cost components beyond equipment procurement. The final investment structure depends on production capacity, plant type (mobile or stationary), site conditions, and project location. In real engineering projects, cost distribution is not fixed but follows a relatively stable pattern based on plant scale and configuration complexity.
Typical Cost Breakdown (Real Project Reference)
| Cost Component | Typical Share of Total Investment | Real Project Conditions |
|---|---|---|
| Equipment Cost | 65% – 80% | Main driver of investment; higher in large or automated plants |
| Transportation | 4% – 10% | Depends on distance, export shipping, and plant size |
| Foundation Works | 0% – 10% | Zero for mobile plants; higher for poor soil or heavy stationary lines |
| Installation & Commissioning | 3% – 7% | Increases with number of crushing stages and system complexity |
| Power Supply System | 2% – 5% | Higher when grid power is unstable or high-capacity motors are used |
| Labor & Training | 1% – 3% | Depends on operator experience and overseas project deployment |
| Early Maintenance | 2% – 4% (first 6–12 months) | Higher wear during initial adjustment phase |
Equipment Cost (Main Investment Driver)
Equipment cost typically accounts for the largest share of the total investment because it defines the production capacity and process capability of the plant. In most projects, a basic crushing system includes a primary crusher and screening unit, while a full production line may include multiple crushers, screening systems, conveyors, and centralized control systems.
Larger capacity and more complex configurations naturally lead to higher equipment investment.
Transportation Cost (Highly Location-Dependent)
Transportation cost is mainly determined by crusher plant size and delivery distance. Compact mobile crusher plants can usually be shipped in standard containers, while large stationary production lines may require multiple containers, partial dismantling, and special freight handling.
For overseas projects, logistics coordination, customs handling, and port transfer also increase total transportation cost.
Foundation Works (Stationary Plant Only)
Stationary crushing plants require reinforced concrete foundations to support heavy equipment and reduce vibration during operation. This includes excavation, steel reinforcement, concrete pouring, and structural leveling based on equipment layout.
Mobile crushing plants do not require permanent foundations, which significantly reduces this cost component.
Installation & Commissioning
Installation involves assembling all equipment into a complete crushing line, including crushers, feeders, screens, conveyors, and electrical systems. Commissioning is required after installation to adjust equipment settings, stabilize material flow, and ensure designed output size and capacity.
More complex multi-stage systems require longer installation and debugging time.
Power Supply System
A stable power system is required to ensure continuous operation of the crusher plant. This typically includes transformers, distribution cabinets, and power cables, and may also include backup generators in areas with unstable electricity supply.
Higher-capacity plants require stronger electrical infrastructure, increasing overall system cost.
Labor & Training
Operator training is necessary before production begins to ensure safe and efficient equipment operation. In overseas or remote mining projects, additional labor mobilization costs may be required due to the need for skilled technical operators.
Proper training reduces operational errors and improves long-term production stability.
Early Maintenance (First Operation Phase)
During the initial operating period, wear parts such as jaw plates, liners, and conveyor belts experience faster consumption due to system adjustment and material testing. This is a normal phase in new installations before the plant reaches stable production conditions.
After stabilization, maintenance costs become more predictable and easier to control.

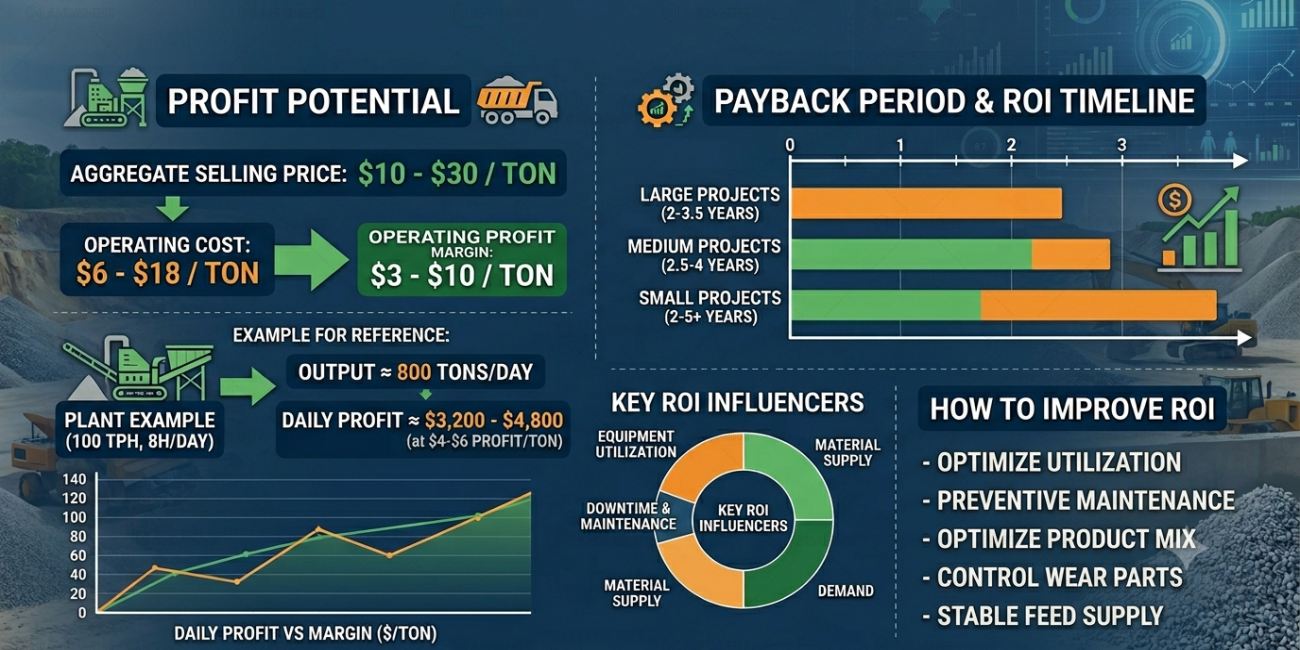

Stone Crusher Plant ROI and Payback Period Analysis
For most investors, the key concern is not only the initial investment, but whether a stone crushing plant can generate stable and sustainable cash flow over time. In real-world aggregate production projects, profitability mainly depends on local aggregate selling price, material hardness, production efficiency, and equipment uptime.
Profit Potential
A stone crusher plant generates revenue by producing and selling crushed aggregates used in road construction, building materials, and infrastructure projects.
In most markets, the selling price of crushed stone typically ranges from $10 to $30 per ton, depending on product size, material quality, transportation distance, and regional demand conditions.
At the same time, operating cost (including fuel/power, wear parts, labor, and basic maintenance) is commonly in the range of: $6 – $18 per ton (varies significantly depending on material hardness, energy cost, and equipment efficiency)
As a result, the typical operating profit margin is around $3 – $10 per ton, while in most stable projects it is more commonly $4 – $8 per ton.
Example for reference:
A 100 TPH crushing plant
Operating 8 hours/day
Output ≈ 800 tons/day
If average operating profit is $4–$6 per ton, then:
👉 Daily operating profit ≈ $3,200 – $4,800
Higher margins usually occur when:
- Local aggregate demand is strong.
- Transport distance to construction sites is short.
- Plant operates at high utilization rate.
- Production is stable with minimal downtime.
ROI Timeline (Typically 2–5 Years)
The payback period of a stone crusher plant is not fixed, but depends on operating conditions and market stability.
Typical industry ranges are:
- Large, continuously operating projects: 2–3.5 years.
- Medium commercial production plants: 2.5–4 years.
- Small or intermittent projects: 2–5+ years (depending heavily on utilization rate and project continuity).
In practice, ROI is strongly influenced by:
- Equipment utilization rate (this is the most critical factor).
- Stability of raw material supply.
- Local infrastructure and construction demand.
- Downtime and maintenance efficiency.
Well-managed plants in high-demand regions can achieve faster payback, while underutilized plants may extend ROI beyond 5 years.
How to Improve ROI
Improving ROI is mainly about increasing output efficiency and reducing cost per ton rather than simply increasing selling price.
Key practical strategies include:
- Maintain high utilization rate (70%–85% or higher when possible): Idle time is one of the biggest hidden profit losses in real projects.
- Reduce equipment downtime through preventive maintenance: Stable operation directly improves annual output and cash flow.
- Optimize product mix (different aggregate sizes): Multiple product grades usually improve selling flexibility and market reach.
- Control wear part consumption: Material hardness and correct crusher configuration significantly affect liner and jaw plate lifespan.
- Ensure stable feed supply: Interrupted feeding can reduce effective annual production by 10–30% in real operations.
In most real projects, even a 10% improvement in uptime or efficiency can significantly shorten the payback period.
Application Cases: Cost-Effective Crushing Solutions in Practice
Here are real project cases of both mobile and stationary crushing plants used in different environments. Each solution is selected based on site conditions, production needs, and budget requirements, ensuring stable performance, good aggregate quality, and cost-effective operation in real projects.

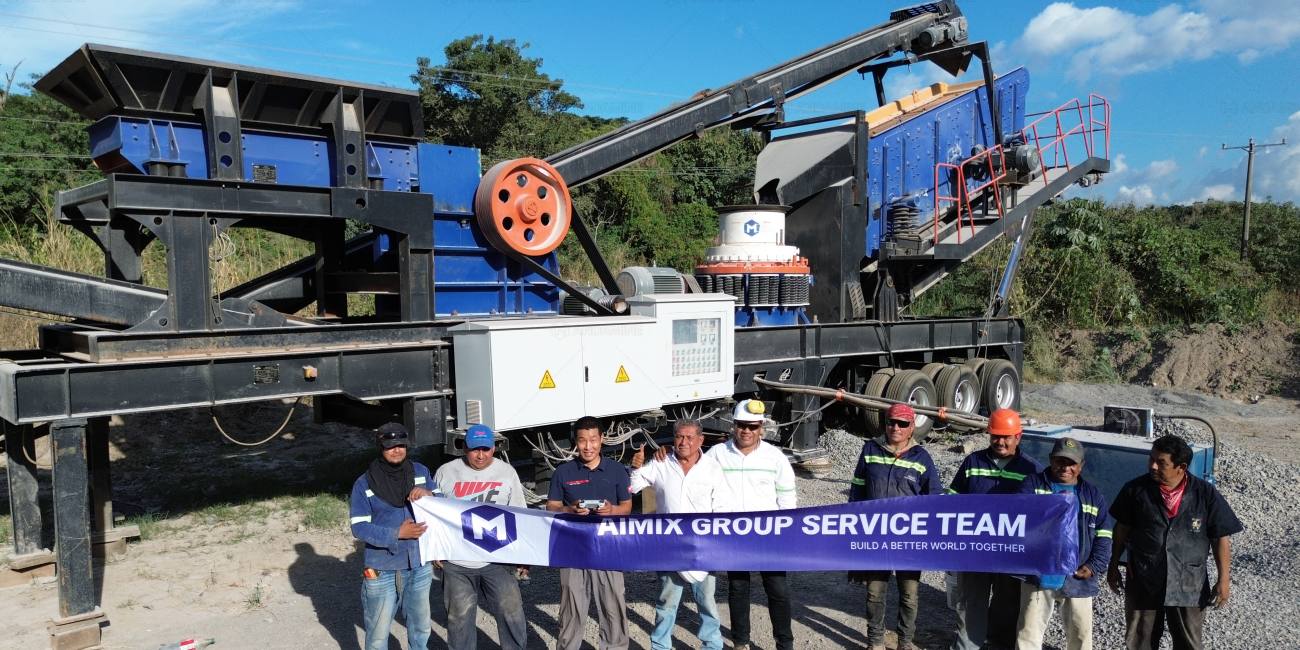

50 TPH 4-in-1 Mobile Crusher Plant Successfully Operated in El Salvador
In the context of growing infrastructure development in Central America, a client in El Salvador required a compact and efficient crushing solution for producing high-quality aggregates for road construction. Due to complex terrain, limited installation space, and tight project deadlines, a traditional stationary plant was not feasible.
Project Challenge
- Limited site space and difficult terrain conditions.
- Fast project execution required for market demand.
- Strict requirements on aggregate shape and gradation.
- Need for a flexible and rapidly deployable solution.
Solution: 50 TPH Mobile Crusher Plant
To meet these requirements, a 4-in-1 mobile crushing and screening plant (jaw crusher + cone crusher + vibrating screen + feeder) was deployed. This compact configuration allowed all crushing processes to be integrated on a single chassis, eliminating the need for complex foundation work and significantly reducing installation time.
From a cost perspective, this type of solution represents a typical configuration in the 50 tph stone crusher plant price range for small to medium-scale aggregate production projects.
Project Results
- Stable operation at around 50 TPH capacity.
- High-quality aggregates with good particle shape.
- Low flaky and elongated content.
- Fast installation and commissioning on-site.
- Improved project efficiency and material utilization.
This case demonstrates how a well-configured mobile crushing solution can effectively balance mobility, production efficiency, and investment cost in real construction environments. If you have a similar project, we can help you evaluate the most suitable 50 tph crusher plant price and configuration for your site conditions.

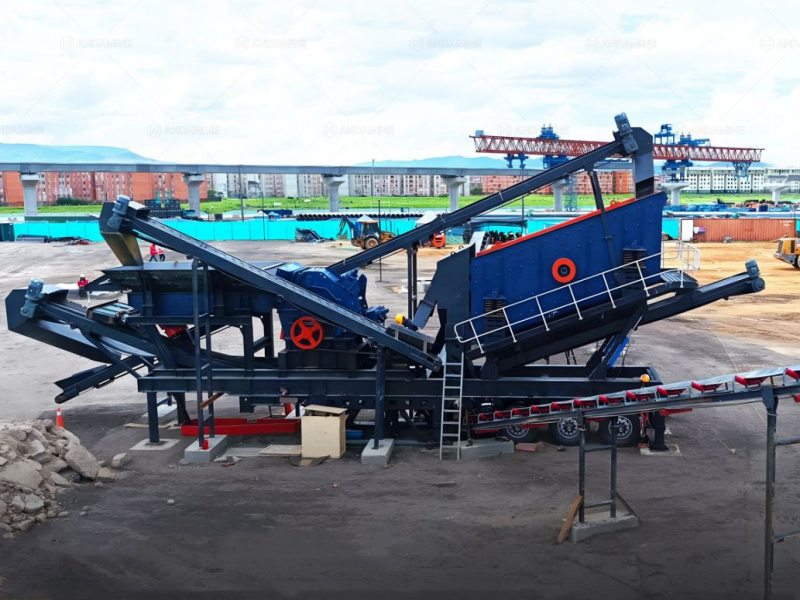

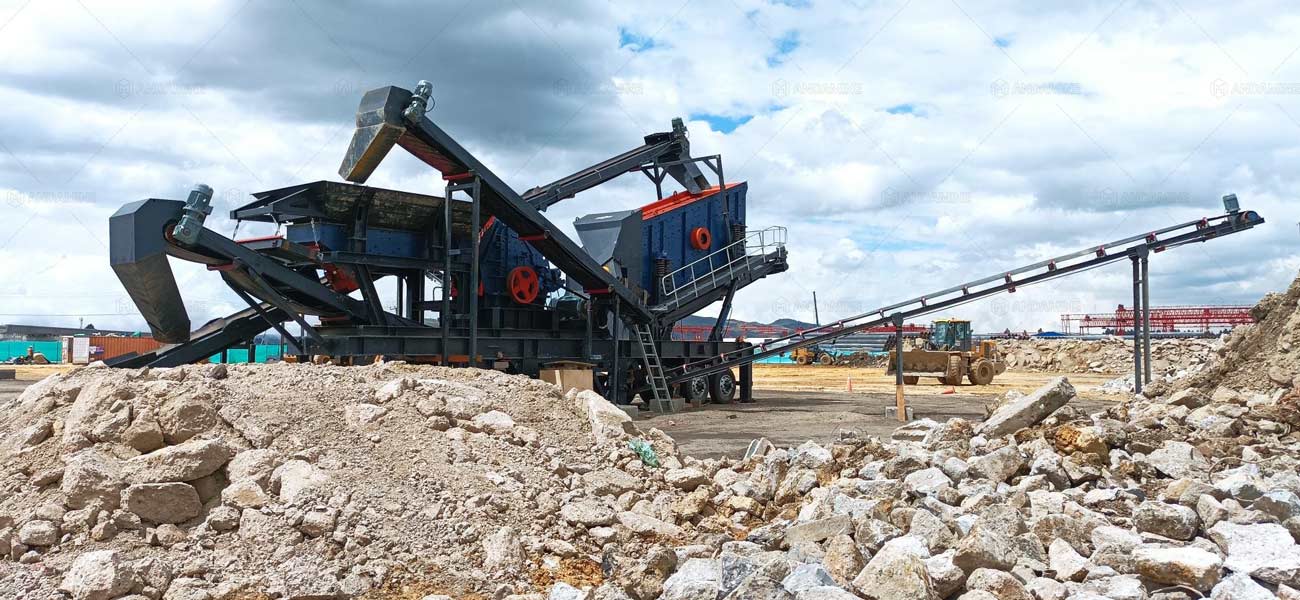

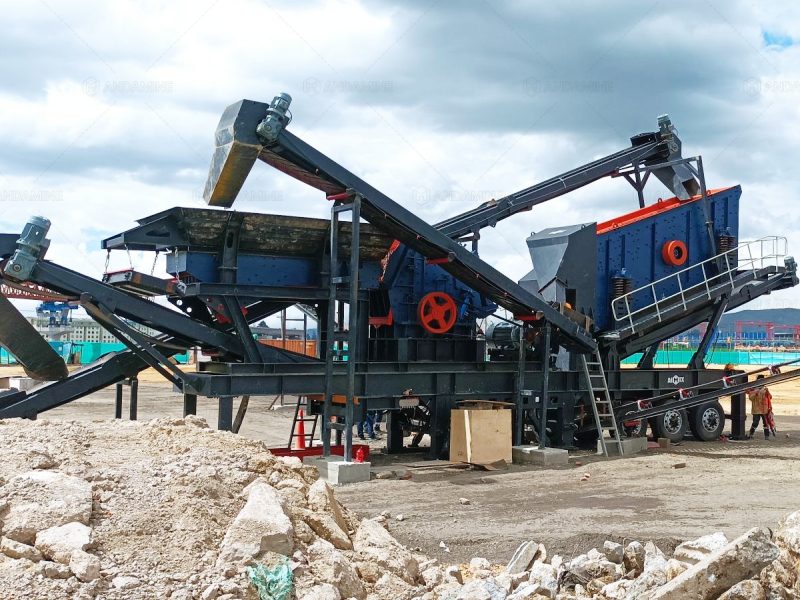

150 TPH 3-in-1 Mobile Impact Crusher for Metro Project in Bogotá, Colombia
This project is a typical urban recycling application where a mobile crushing solution was required to process demolition waste into qualified sub-base material for metro construction. The client needed stable production, good particle shape, and efficient operation within limited urban space.
Project Challenges in Limited Urban Construction Conditions
- Strict requirements for aggregate gradation and particle shape.
- Limited working space in dense urban construction area.
- Need for flexible relocation as metro sections progressed.
- Stable output capacity of 120–150 TPH.
Mobile Crushing Solution for Efficient On-Site Recycling
A 3-in-1 mobile impact crusher plant was deployed, integrating feeding, crushing, and screening functions on one chassis. This compact design allowed fast installation and easy relocation between different construction zones. The selected configuration also ensured stable performance for recycling demolition materials into usable aggregates for infrastructure base layers.
Project Results: Stable Output and High-Quality Aggregates
- Stable 120–150 TPH production capacity.
- Well-shaped recycled aggregates meeting engineering standards.
- Reduced transportation and material handling costs.
- On-site recycling improved construction efficiency and sustainability.
This case shows how a properly configured mobile plant can significantly improve urban construction efficiency, especially in demolition waste recycling projects with strict quality requirements. If you are looking for a 150 tph crusher plant price solution for your project, feel free to contact us for a customized recommendation and quotation.

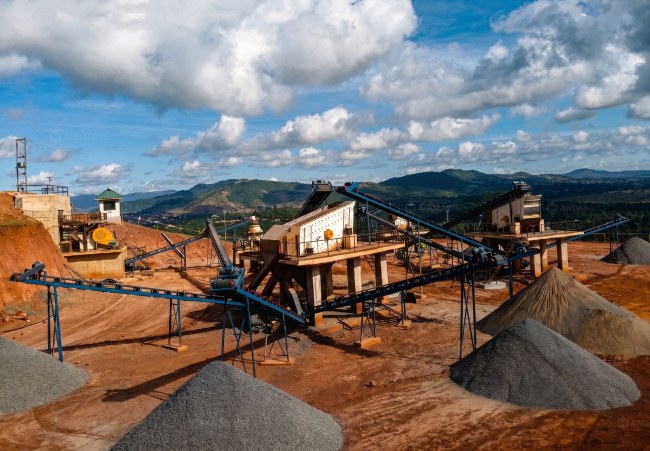

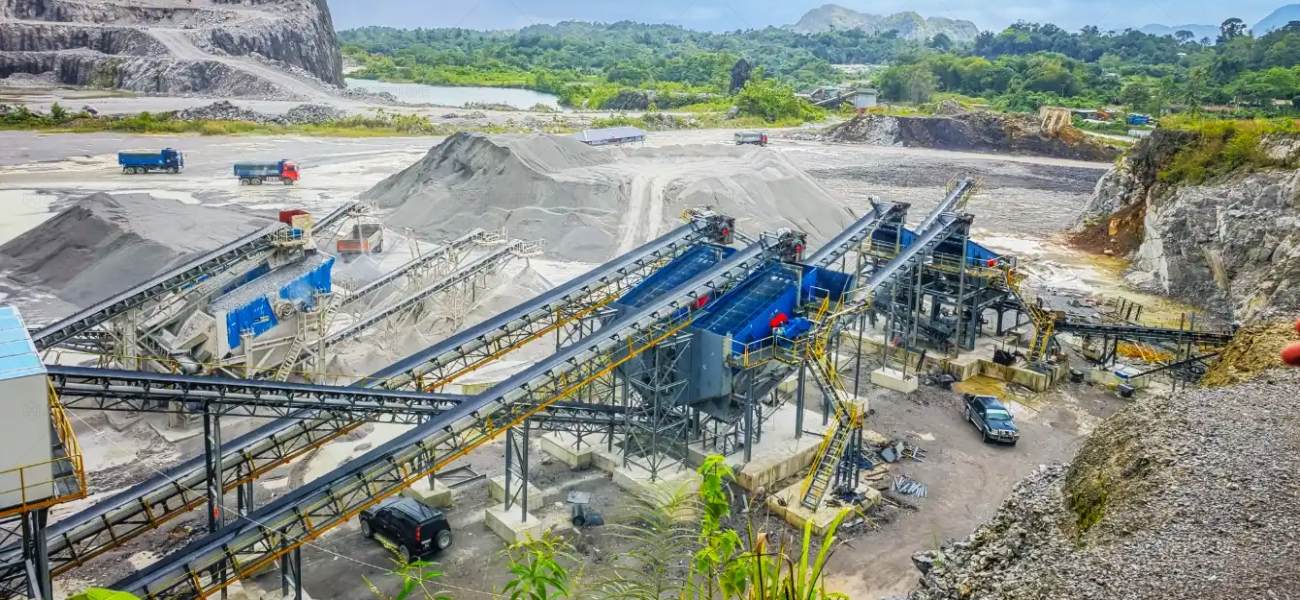

Customized 600 T/H Stationary Crushing Plant for Limestone Processing in Malaysia
In January 2025, a stationary limestone crushing plant was put into operation in East Malaysia, providing high-quality aggregates for local road construction projects. Since commissioning, the plant has been running smoothly with stable output and reliable performance.
Customer Requirements
The client mainly focused on achieving a balanced cost-performance solution, ensuring reliable and timely local technical support, and maintaining stable long-term production efficiency.
Our Solution
To meet the project needs, a complete solution was provided, including equipment configuration, installation support, and after-sales service assurance.
- Local Service Support: A Malaysia branch office ensures fast response and technical assistance.
- On-site Engineering Service: Professional engineers supported installation, commissioning, and operation training.
- Reliable Operation System: Spare parts supply and technical support help reduce downtime and maintain continuous production.
Plant Configuration
Jaw Crusher → Cone Crusher → Vibrating Screen → Transfer Silo → Centralized Control System
Key Advantages
- Stable structure design: Ensures long-term operational reliability.
- Adaptable to local climate: Suitable for humid and rainy conditions.
- Smart control system: Real-time monitoring improves production efficiency.
- Consistent output: Stable aggregate quality for construction use.
Project Results
The plant delivered stable production performance with improved efficiency and reduced downtime. With strong local service support, it has ensured continuous operation and reliable aggregate supply for road construction projects.
How to Select the Right Stone Crushing Plant for Your Project
Selecting a stone crushing plant requires more than comparing prices or capacities. In real projects, the right choice depends on production demand, material conditions, and long-term operating stability. A structured evaluation helps ensure the equipment matches actual working conditions and avoids underperformance or unnecessary investment.
Define Production Requirements in Real Operating Conditions
Production planning should be based on daily output demand rather than theoretical capacity alone.
You should consider:
- Whether production is continuous (daily supply) or intermittent (project-based).
- Peak output demand during high construction periods.
- Expected working hours per day (8h, 10h, or 24h operation).
In practice, many projects select a crusher plant with 10–20% extra capacity buffer to avoid overload during peak demand periods.
Identify Raw Material Characteristics Before Equipment Selection
Raw material type directly determines crusher strength, wear resistance, and configuration requirements.
Key factors include:
- Material characteristics: Identify whether the material is hard rock, soft rock, or recycled construction waste, as different materials require different crushing processes and equipment combinations.
- Maximum feed size: Determine the largest size of the raw material. Oversized feed may require a larger primary crusher or an additional pre-crushing stage.
- Moisture and clay content: Materials with high moisture or excessive clay can cause blockages and reduce production efficiency, making additional screening or feeding equipment necessary.
Accurate material assessment is essential for selecting the right crushing solution and ensuring stable long-term operation.
Choose Mobile or Stationary Based on Site Operation Pattern
The choice between mobile and stationary plants should not be based on general application types, but on how stable and continuous the production site is during the project lifecycle.
- Stationary plants are more suitable when production is expected to remain in one location for a long period, with stable raw material supply and continuous output requirements.
- Mobile plants are more suitable when production needs to be relocated, adjusted to different sites, or deployed in phases across multiple locations.
The key decision factor is whether maintaining a fixed production setup will provide better long-term efficiency than repeated relocation and reinstallation.
Match Plant Configuration to Required Output Structure
Different projects require different aggregate grades, which determines the number of crushing stages.
Typical output requirements include:
- Single-size aggregate is typically used in basic construction projects such as road base preparation or general filling works, where uniform particle size is sufficient for structural stability.
- Multi-grade aggregates are commonly required in concrete production, where different particle sizes work together to achieve better strength performance, workability, and mix design balance.
- Fine aggregate production is often required for asphalt mixtures or high-standard engineering projects, where strict control of particle size and material quality is necessary.
More output size requirements generally lead to more complex crushing and screening system configurations.
Evaluate Total Operating Cost Over Equipment Lifespan
Selection should focus on long-term cost per ton rather than initial investment.
Key cost components include:
- Energy consumption during continuous operation.
- Wear parts replacement frequency (jaw plates, liners, hammers).
- Maintenance downtime impact on production output.
- Labor efficiency and automation level.
In many real projects, a slightly higher initial investment can reduce long-term operating cost significantly through better efficiency and lower downtime.
Why Choose Andamine as Your Stone Crusher Plant Manufacturer
Choosing a stone crusher plant manufacturer is not only about price, but also about whether the equipment can match real project conditions, maintain stable output, and reduce long-term operational risk.
Customized Engineering Solutions
Andamine design crusher plant configurations based on actual project conditions such as limestone, granite, basalt, or construction waste, as well as required output size (0–5 mm, 5–20 mm, etc.) and capacity range from small to large-scale production.
This helps ensure the plant is properly matched with real working conditions, avoiding unnecessary equipment investment or insufficient production capacity.
Proven Project Application Experience
Our equipment has been used in quarry production, mining operations, road construction, and recycling projects, where different materials and feed sizes require different crushing configurations and process layouts.
This practical application experience helps reduce configuration risk when dealing with complex or variable raw material conditions.
Installation and Commissioning Support
We provide step-by-step installation guidance, on-site or remote commissioning support, and operator training to ensure the plant can quickly reach stable production and reduce early-stage operational mistakes.
Proper commissioning also helps improve equipment efficiency and reduce unexpected downtime during initial operation.
Spare Parts and Maintenance Support
We supply key wear parts such as jaw plates, cone liners, impact hammers, and screen meshes to support continuous operation under high-wear conditions.
Fast replacement support helps reduce shutdown time and maintain stable production output in long-term operation.
Global Engineering and Service Capability
With over 15 years of industry experience and cooperation with Fortune Global 500 companies, we have established branch offices, representative offices, and service points in many countries such as Indonesia, Malaysia, Uzbekistan, Russia, Peru, and Saudi Arabia to support local project execution, spare parts supply, and technical services.
Frequently Asked Questions (FAQs)
What is the minimum investment to start a stone crushing business?
What affects the service life of a crusher plant?
What is the biggest cost in operating a crushing plant?
How much space is needed for a stone crusher plant?
How long does it take to install a stone crusher plant?
Do I need skilled operators to run a crusher plant?
What is the main reason crusher plants fail to perform well?
How often do crusher wear parts need replacement?
What is the output size range of a stone crushing plant?
Can crusher plants be upgraded later?
A stone crusher plant is a long-term investment that affects your production efficiency, operating cost, and project success. Choosing the right solution is key to stable and profitable operation. If you are planning a project, contact us for a customized stone crusher plant solution and quotation based on your requirements.
