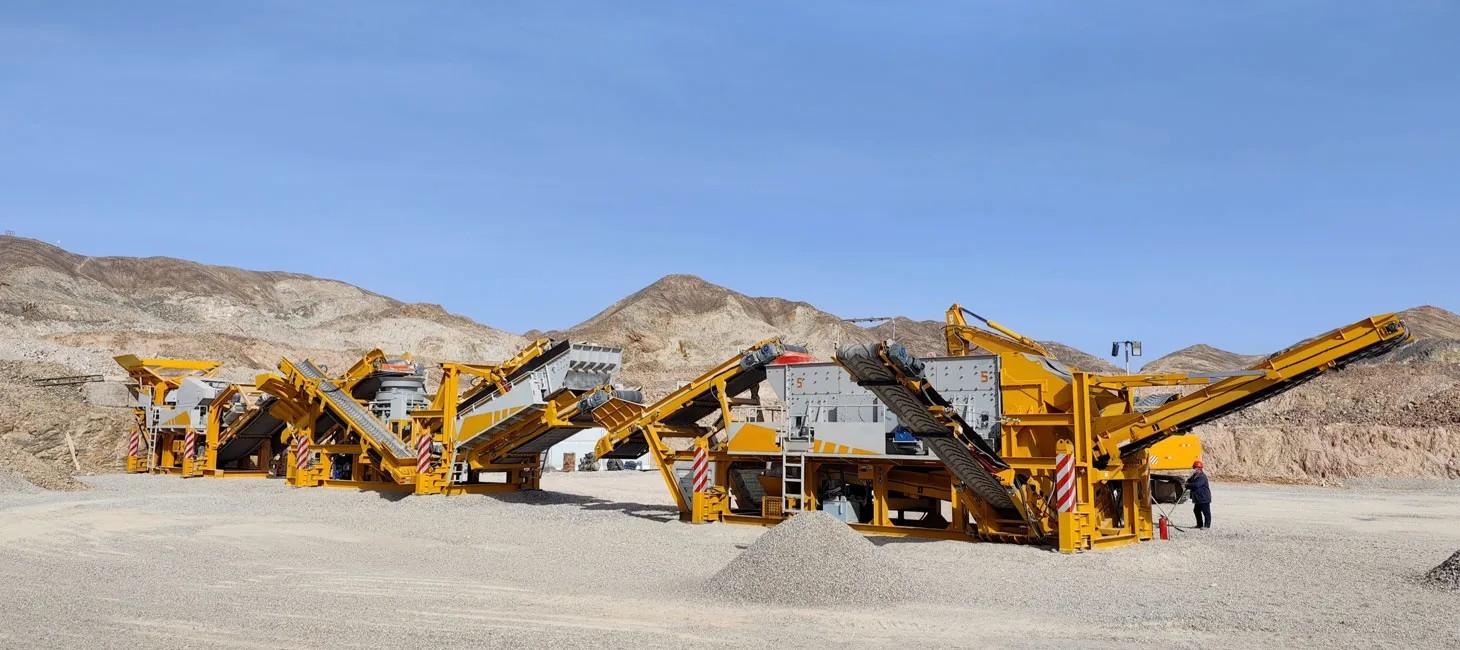

Crusher plants are essential in industries such as mining, construction and aggregate production. They convert large rocks, ores, construction waste, etc. into smaller, aggregates that can be used for roads, buildings and infrastructure. But how do crusher plants actually work? The workflow of the crushing production line can be summarized as “raw material input – grading and crushing – screening and sorting – finished product output”, the specific steps are as follows:
1.Raw Material Preparation and Feeding
This step ensures uniform feeding by pre-treating the raw material.
Raw material loading and pre-processing: Raw materials (e.g. raw stone, ore or construction waste) are transported to the feed zone by excavator or loader. Large chunks of material may need to be initially broken down by hydraulic hammers or blasting to ensure that the size is suitable for the feed opening of the primary crusher (typically ≤ 1 meter).
Uniform feed: The vibrating feeder feeds the primary crusher evenly and continuously, avoiding clogging or wear caused by uneven feeding.
2.Primary Crushing (Coarse Crushing Stage)
The jaw crusher crushes the raw material to 150-300mm coarse aggregate through the periodic extrusion of the movable jaw and fixed jaw. The crushed material enters the conveyor belt through the bottom discharge opening and is transported to the next stage.
Equipment Selection: Commonly use jaw crusher.
3.Secondary Crushing (Medium to Fine Stage)

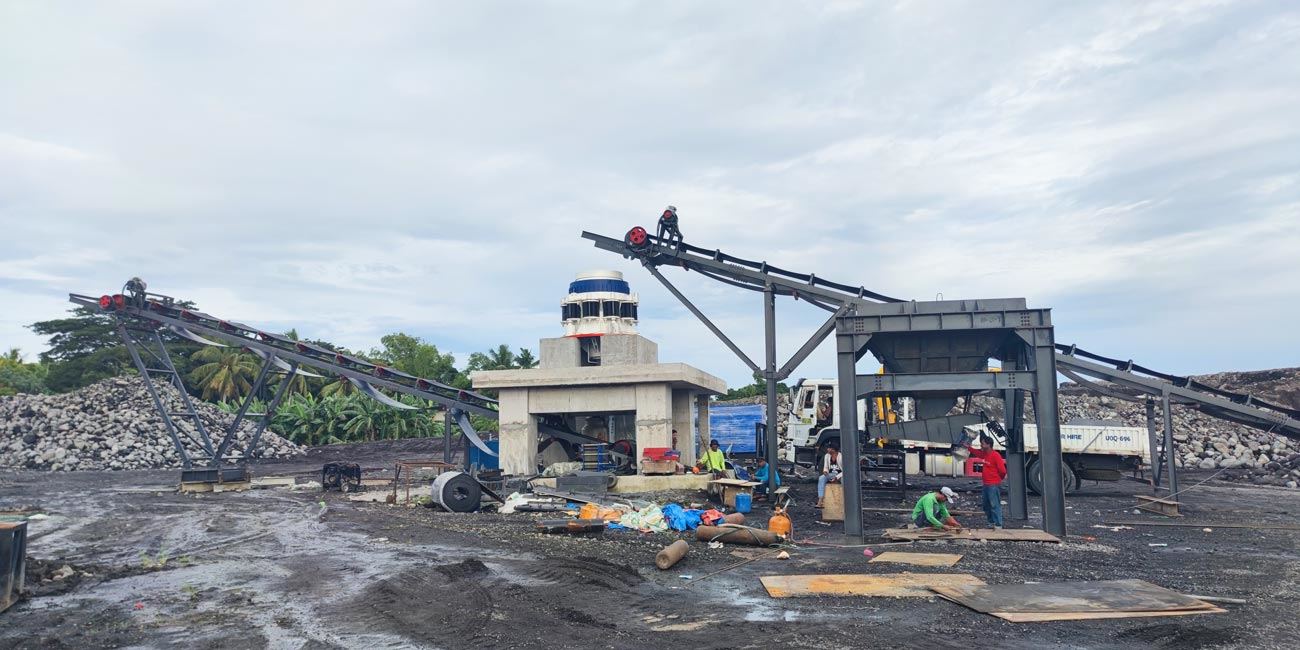

Crusher Crushing: Cone crusher can further crush materials up to 20-100 mm by adjusting the gap between the eccentric rotating cone and the fixed cone, which is suitable for high hardness materials (e.g. granite). Impact crusher utilizes high-speed rotor to hammer the material, and the finished product is mostly cubic, which is suitable for low and medium hardness materials (e.g. limestone).
Recycling control: If there are still oversized materials after secondary crushing, they can be sent back to the crusher through the return conveyor belt to be processed again.
Equipment Selection: Cone Crusher, Impact Crusher
4.Vibrating Screening
Aggregates of different sizes enter the corresponding finished yard or conveyor belt through the divider. The first layer of screen has larger aperture, screen out larger particles, and return to the secondary crusher for re-processing. The second screen separates the finished aggregate (e.g. 5-20mm medium gravel) that meets the requirements. The third screen separates fine sand or stone powder (≤5mm), which is used for concrete or roadbed filling.
Equipment Selection: Multi-layer vibrating screen (Vibrating Screen), usually set up 2-3 layers of screens.
5.Fine Crushing and Shaping
When ultra-fine aggregates (e.g. mechanism sand) are required or to improve the shape of the particles, a fine crushing operation is required. The VSI throws the material at high speed to make it collide and rub with the surrounding guard plate to form high-quality sand with uniform particles and fewer edges. The finished product can be directly used for concrete mixing or asphalt mixture.
Equipment Selection: Vertical Shaft Impact Crusher (VSI Crusher) or sand making machine.

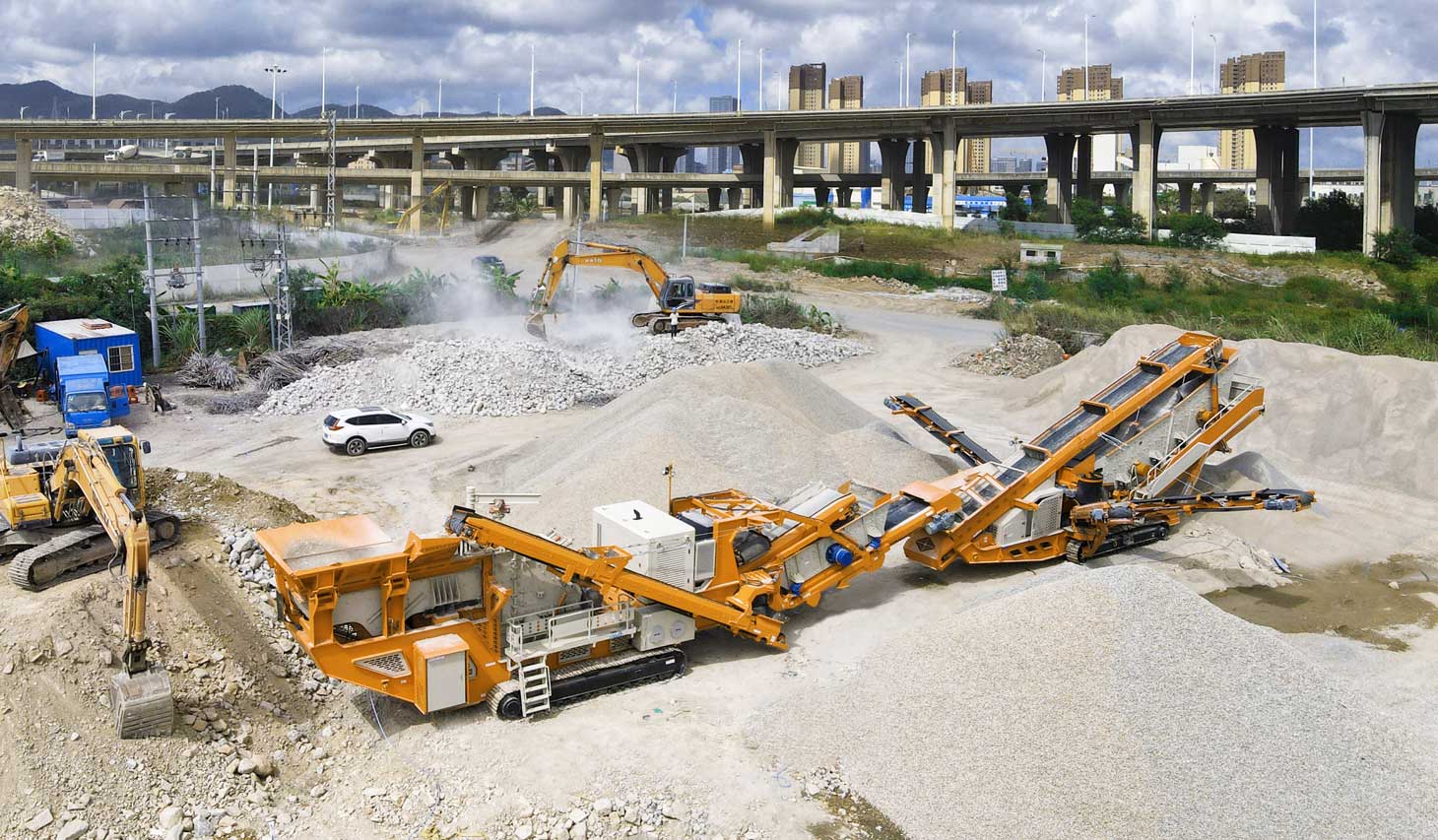

6.Finished Aggregate Storage and Transportation
Finished screened aggregates are sorted and stockpiled according to specifications to avoid mixing and contamination. The finished aggregates are loaded into trucks using loaders or automatic loading systems and then transported to construction sites or downstream processing plants.
Precautions in the Working Process of the Crusher Plant
After understanding how a crushing plant works, I’m going to share a few safety precautions to help you ensure an efficient, hazard-free operation. There are several safety and maintenance considerations involved in the work process of the crusher plant, and here are some key precautions to take:
Regular Maintenance and Inspection
Routine maintenance and inspection are essential to keep the crusher plant running smoothly. Regularly check the wear and tear of parts such as belts, screens and crushers. Replace worn parts in time to prevent breakdowns.
Dust Control
Crushing operation generates a lot of dust, which is harmful to workers and the environment. Dust control measures such as water spraying, dust removal systems and proper ventilation are essential.
Safety Training
Ensure that all personnel working in the crusher plant are adequately trained in safety procedures. This includes knowing how to operate machines safely, recognizing potential hazards, and understanding emergency response protocols.
Proper Material Handling
Proper material handling is critical to preventing accidents and equipment damage. Ensure that material is fed into the crusher at a consistent rate and avoid overloading the system.
By following the above working steps and observing the safety precautions, you can ensure the efficient and safe running of your crusher plant. If you want to know more about crushing plant, please feel free to contact us!
