Meeting the Middle East Infrastructure Boom: Crushing Equipment in Extreme Environments

The “Post-Oil Era” Infrastructure Boom and Economic Transformation

To reduce reliance on a single oil economy, many Middle Eastern countries are vigorously promoting economic diversification, most notably through massive infrastructure development.

• Saudi Arabia’s “Vision 2030”: Includes mega-projects such as the $500 billion NEOM “The Line” city, the Red Sea Project, and the Qiddiya entertainment city. These projects require hundreds of millions of tons of high-standard concrete aggregates, asphalt aggregates, and roadbase materials.
• Continuous Expansion in the UAE and Qatar: With population growth and tourism development, construction of new airports, ports, highways, and high-end commercial residences remains steady, keeping demand for high-quality basalt, limestone, and granite aggregates at a high level.

These mega-projects have extremely strict standards for aggregate shape (such as the ratio of cubic particles), gradation, and silt content. Consequently, high-performance crushing and screening lines capable of producing aggregates is vital.

Post-War Reconstruction: Rising “Urban Mines” from Ruins

Beyond new infrastructure, parts of the Middle East (such as Syria, Iraq, and parts of the Levant) face the daunting task of post-war reconstruction following long-term conflicts.

• Massive Construction Waste: Conflicts have left tens of millions of tons of collapsed building debris, concrete fragments, and bricks. Transporting this waste to suburban landfills is not only costly but also causes significant secondary environmental pollution.
• Urgent Need for Local Sourcing: Reconstruction requires enormous amounts of sand and gravel. In areas with scarce resources or destroyed transportation, the cost of re-mining natural stone is prohibitive. Here, “Construction Waste Recycling” has become the best—and sometimes only—solution.

Using professional mobile crushing stations, operators can separate steel bars from waste concrete and crush/screen the concrete blocks into Recycled Concrete Aggregates (RCA) for new roadbeds or non-load-bearing concrete components. This is not only an environmental requirement but also the most cost-effective way to rapidly restore infrastructure.

Fatal Heat: Collapse of Hydraulic and Lubrication Systems

In summer, the surface temperature of equipment in open-pit mines can easily exceed 70°C.

• Lubrication Failure: High temperatures drastically reduce the viscosity of lubricating oils and greases, causing the oil film to break. Without oil film protection, core components (such as eccentric bearings and main bearings) suffer direct metal-to-metal friction, leading to rapid bearing burnout or “seizing.”
• Hydraulic System Paralysis: The hydraulic adjustment and clearing systems of cone crushers, as well as the hydraulic track drive systems of mobile stations, rely heavily on hydraulic oil. Extreme ambient temperatures cause oil temperatures to exceed limits, accelerating the aging and embrittlement of seals (O-rings, oil seals), leading to internal or external leakage and eventual system failure.

Pervasive Dust: Accelerated Wear and Operating Difficulties

Middle Eastern sandstorms (Shamal) carry vast amounts of fine silica particles—a substance that is extremely hard and abrasive.

• Engine and Filter Clogging: Diesel-powered mobile crushing plants inhaling air with high dust content can see air filters clog in a very short time, leading to insufficient intake, power loss, or even engine “cylinder scuffing” and black smoke.
• Abrasive Wear: When fine sand enters bearing chambers or hydraulic tanks, it acts like sandpaper, accelerating the wear of internal precision components.
• Radiator Failure: Dust adhering to cooling fans and radiator fins forms a thick “insulation layer,” severely hindering heat dissipation and creating a vicious cycle of overheating.

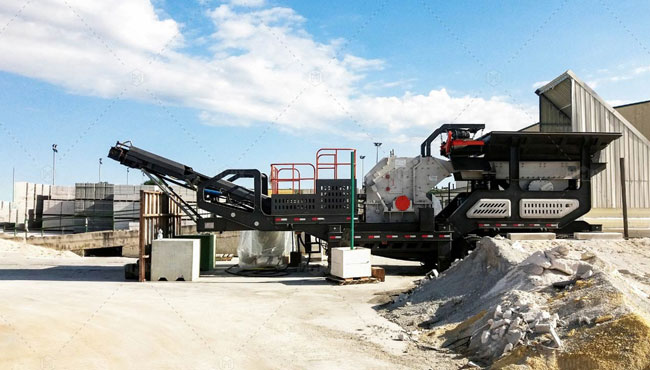

High Mobility and Stable Chassis Design

For the vast desert terrain and damaged infrastructure of post-war environments, Andamine employs industry-leading mobile designs:

• Triple-Axle Chassis Design: This high-strength axle layout, optimized through precision stress analysis, ensures that equipment is not only quick and convenient to move between sites but also possesses excellent off-road capability.
• Sled-Plate Support System: For sandy terrain or soft debris at reconstruction sites, Andamine adds sled-plate supports. This design greatly increases the contact area between the equipment and the ground, effectively preventing sinking during heavy-load crushing and significantly improving stability.

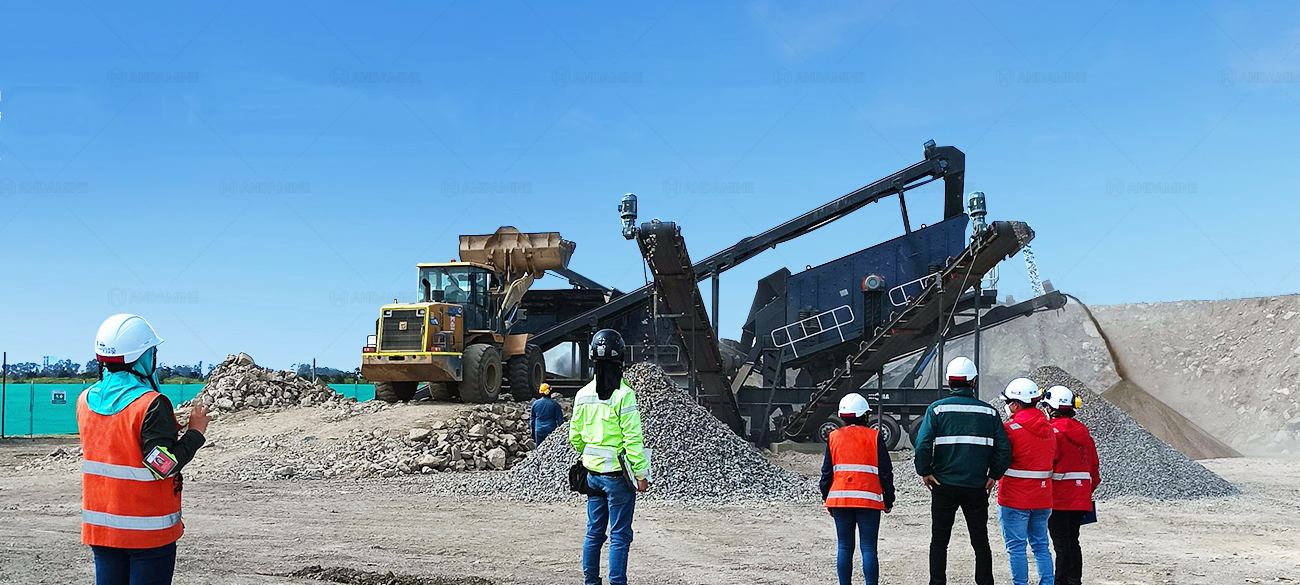

• Integrated Process Flow: Andamine mobile crushing stations integrate feeding, crushing, and screening into one unit. This highly integrated design shortens commissioning time and drastically reduces operating costs associated with multiple transports and transfers.

Heavy-Duty Efficient Crushing Core

In hard rock and construction waste recycling projects, the performance of the crusher directly determines profitability:

• Heavy-Duty Rotor Impact Crusher: The Andamine impact crusher features a precision-machined heavy rotor design with high dynamic inertia, easily meeting two-stage crushing requirements. Its large crushing ratio produces rounded aggregate particles, perfectly matching the strict gradation requirements of top-tier projects like NEOM.
• Full Lifecycle Belt Protection: To handle abrasive sand and construction debris, we use a “slag-discharge drum” tail design to effectively exclude foreign objects and prevent belt damage. Additionally, a “buffer bed” is installed under the main discharge belt of the impact crusher, providing strong impact resistance and excellent sealing to significantly extend belt life.

Digital Control and IoT Maintenance

In extreme heat, reducing manual outdoor work is key to safety. Andamine gives machinery a “smart brain”:

• Integrated Control System: Supports one-key start. Operators can perform precision adjustments via a PLC touchscreen or quickly operate via physical buttons, greatly improving production switching efficiency.
• Intelligent Feeding and Proportioning: Feeders are equipped with remote control functions, allowing feeding speeds to be adjusted in real-time based on material hardness and ambient temperature, ensuring continuous and smooth operation even in high heat.
• IoT Remote Monitoring: This is a core selling point of Andamine equipment. The system monitors oil temperature, pressure, and load status in real-time. Automated maintenance reminders significantly reduce failure rates caused by lubrication issues and allow customers to grasp first-hand operational data from any corner of the globe.

Green Mining: Complete Integrated Dust Suppression Solutions

To address water scarcity and rising environmental compliance requirements, Andamine provides a closed-loop dust suppression system:

• Multi-Point Collaborative Dust Suppression: Using mist cannons in the raw material area, telescopic dust covers at discharge points, and fully enclosed guards on conveyors.
• Negative Pressure Dust Extraction: The impact crusher’s inlet and outlet use double-sealing structures combined with a negative pressure extraction system at the discharge point to ensure a clean working environment. Even in extremely dry conditions, site dust is minimal, meeting international green mining standards.
• Energy Efficiency: The entire machine utilizes customized energy-saving motors, reducing comprehensive energy consumption by 30% compared to similar products, providing a strong competitive edge in energy-sensitive regions.
