In the entire mineral processing and stone crushing industry, crushing and grinding are two indispensable core processes. While crushers including jaw crushers, cone crushers and impact crushers complete coarse and medium material crushing, they can only process raw ores into medium and small particle sizes. For further fine grinding and powder processing to meet mineral beneficiation and high-end aggregate standards, a professional grinding device is essential.
As the most widely used fine grinding equipment in modern mining, construction materials and solid waste recycling industries, the ball mill undertakes the key task of ultra-fine processing of crushed materials. This article will comprehensively introduce the ball mill from working principle, structural composition, product classification, application scenarios, parameter characteristics, selection methods, real overseas export projects, maintenance skills and common faults, providing professional reference for global mine owners and project contractors.

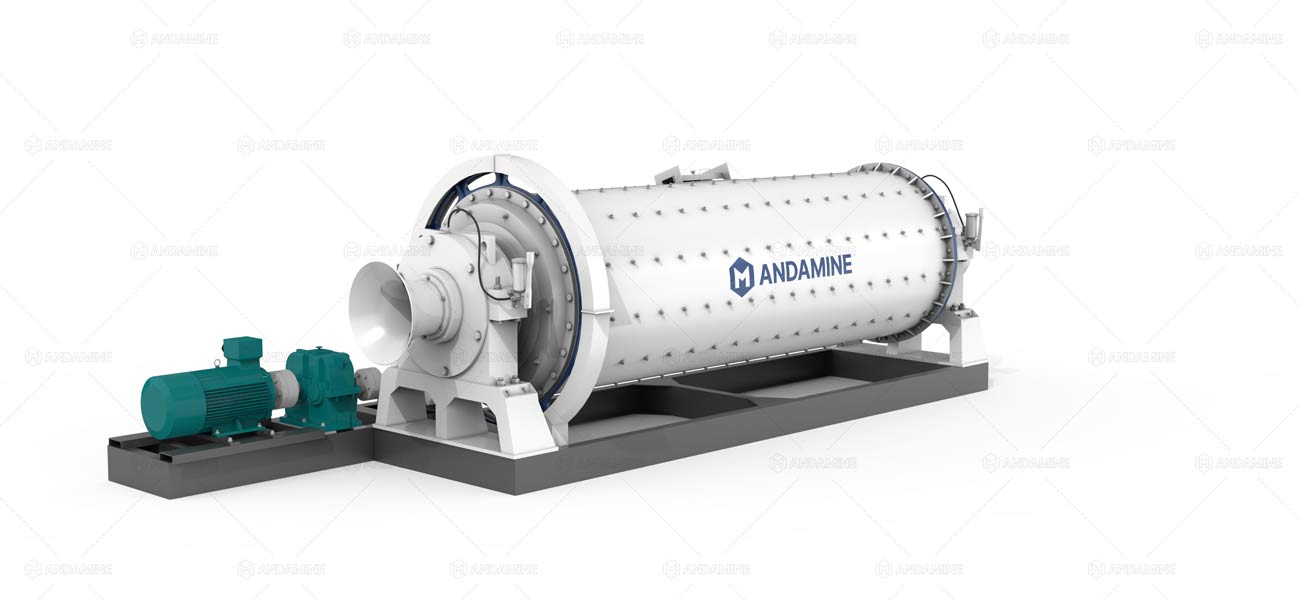

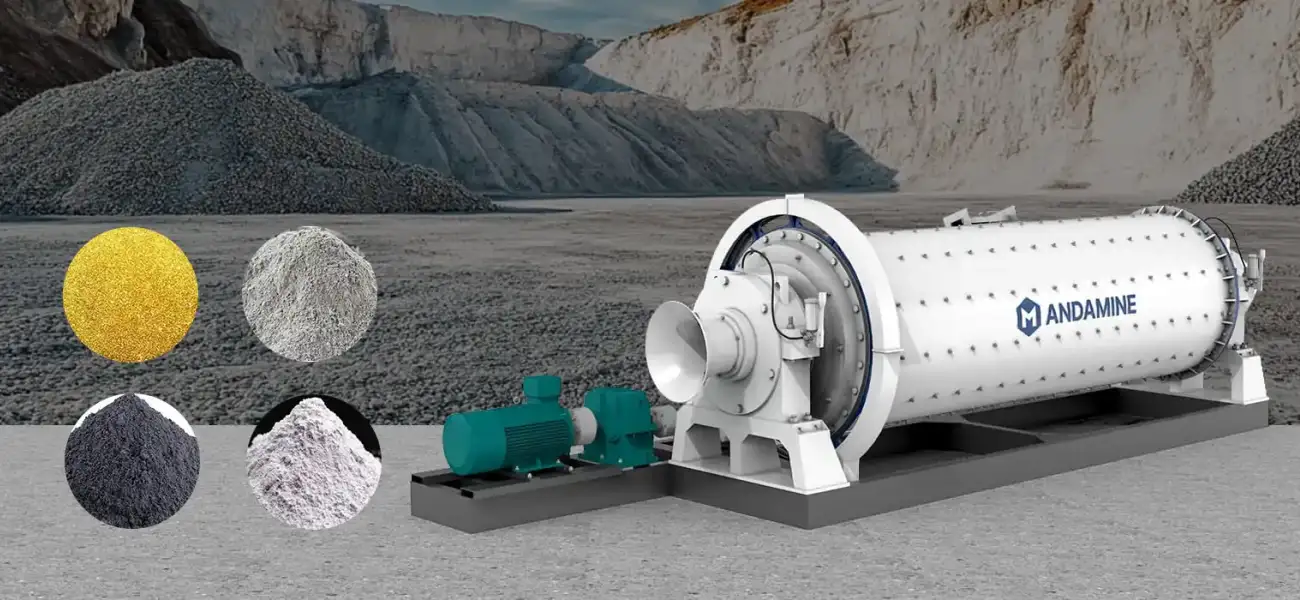

What Is a Ball Mill? Core Position in Crushing Production Line
Before understanding the working principle and performance of ball mills, it is necessary to clarify their core positioning in the crushing and grinding circuit. Many new project investors confuse crushers with ball mills, which leads to unreasonable production line configuration and low output efficiency.
Basic Definition of Industrial Ball Mill
A ball mill is a rotating cylindrical grinding machine that uses steel balls, steel forgings and other grinding media to impact, grind and refine materials. It is professional post-crushing fine processing equipment, mainly used for grinding various ores, stones and industrial raw materials into fine particles or powder.
Difference from Ordinary Crusher
- Crushing stage: Jaw crusher for coarse crushing, cone crusher and impact crusher for medium and fine crushing, with finished particle size generally ranging from 5mm to 100mm.
- Grinding stage: The fineness can reach 0.074mm or finer, meeting the requirements of mineral flotation separation and high-standard sand powder.
Production Line Process Layout
The mature crushing and grinding process of ANDAMINE standard production line is: vibrating feeder → jaw crusher → cone/impact crusher → vibrating screen → ball mill → finished powder. This closed-loop process greatly improves material utilization and production continuity.
Working Principle of Ball Mill: How It Realizes Material Fine Grinding
On the basis of clarifying the basic positioning of the ball mill, we can further understand its internal working logic. The efficient grinding capacity of the ball mill comes from the combined action of mechanical rotation and physical impact grinding, and the whole working process is stable and continuous.

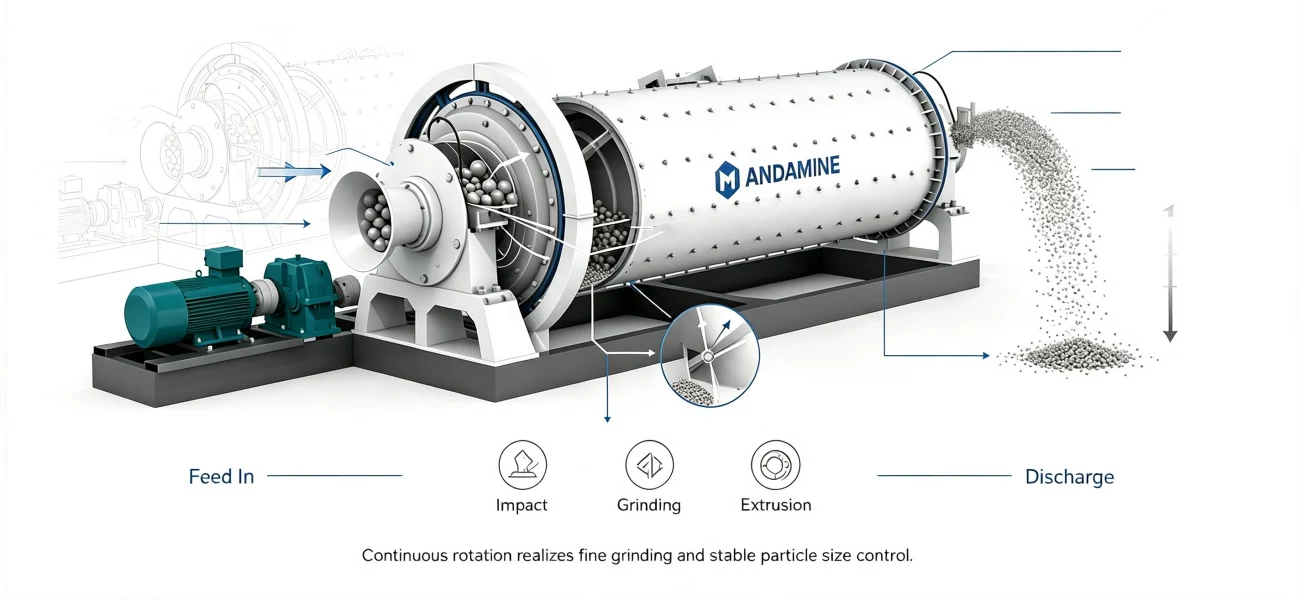

Overall Working Process
Driven by the motor and reducer, the cylinder of the ball mill rotates at a stable fixed speed. After the materials crushed by the crusher enter the cylinder from the feeding port, they move synchronously with the cylinder. Driven by friction and centrifugal force, the grinding media (steel balls) inside the cylinder rise to a certain height, and then fall freely under gravity.
Three Core Grinding Forces
- Impact force: The high-altitude falling steel balls produce strong impact on large-particle materials to break coarse particles
- Grinding force: The grinding media and materials rub and squeeze with each other during rotation to refine medium particles
- Extrusion force: The stacking of internal materials and media forms continuous extrusion, realizing ultra-fine powdering
Discharging Completion Mechanism
After reaching the set fineness, the materials will be discharged from the discharging port. The unqualified coarse particles will be returned to the ball mill for re-grinding through the classifier, forming a closed-circuit grinding system, which effectively avoids unqualified finished products and improves production yield.

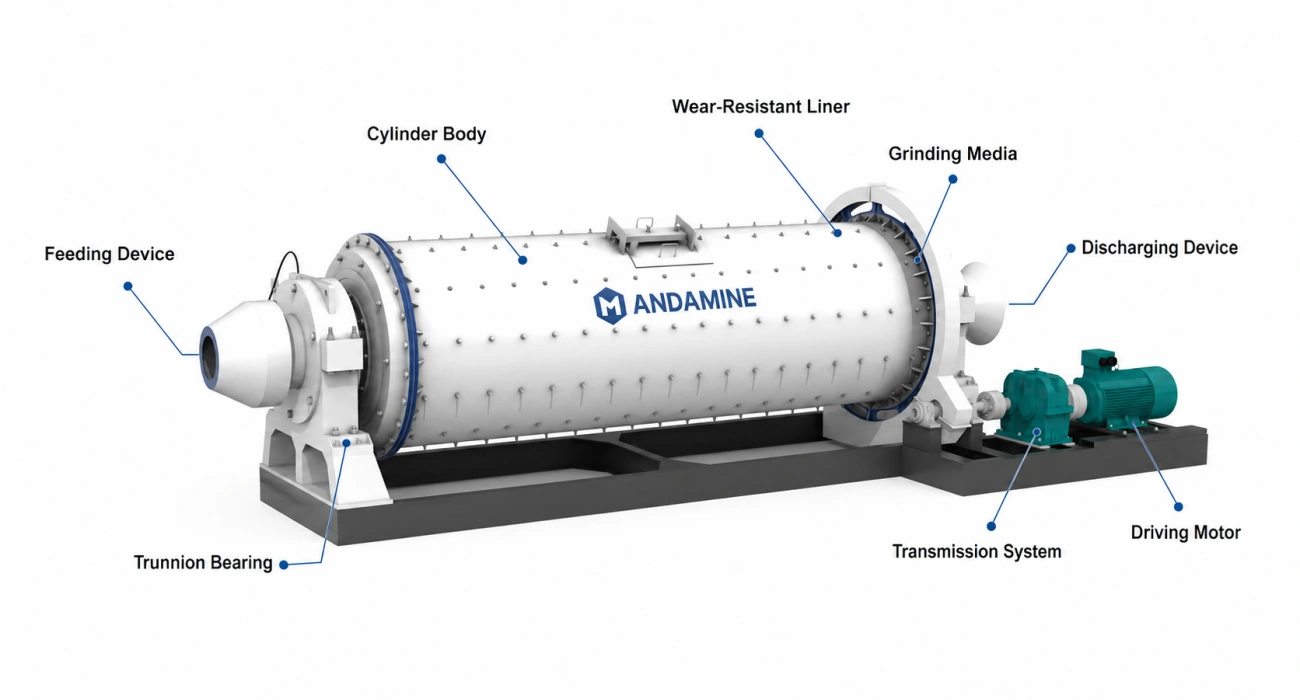

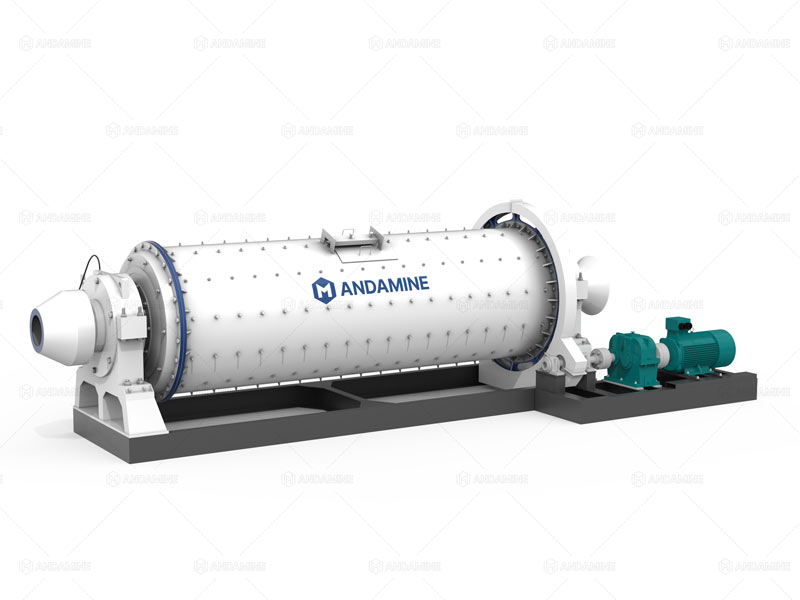

Main Structure of Ball Mill: Complete Component Introduction
After learning about how ball mills grind ores mechanically, we move on to dissect each key component. The stable operation of industrial ball mills depends on scientific and durable structural design. Each core component undertakes independent functions and cooperates with each other to ensure high output, low failure and long service life of the equipment. ANDAMINE optimizes each component based on years of mining equipment manufacturing experience.
Cylinder Body
The cylinder is the main bearing structure of the ball mill, made of high-strength steel plate. It bears the rotation load and material impact for a long time. ANDAMINE adopts integral welding technology to avoid cylinder deformation and cracking, and improves the overall stability of the equipment.
Wear-Resistant Liner
The liner is the core vulnerable part inside the cylinder, which can protect the cylinder from direct impact and friction of materials and grinding media. The high-chromium alloy liner equipped by ANDAMINE has super wear resistance, effectively extending the service life of the equipment and reducing replacement frequency and maintenance cost.
Grinding Media
Grinding media include steel balls and steel forgings of different diameters. According to different material hardness and grinding fineness requirements, we adopt scientific grading proportioning. Large-diameter steel balls are used for impacting coarse materials, and small-diameter steel balls are used for fine grinding, ensuring high grinding efficiency.
Transmission and Driving System
Feeding and Discharging Device
Ball Mill Types: Classification and Applicable Scenarios
With a clear understanding of internal construction, we can sort out different ball mill models on the market. Different working environments, materials and production requirements correspond to different types of ball mills. Choosing the right model is the key to improving production efficiency and reducing operating costs. We classify mainstream industrial ball mills from four professional dimensions.
Classified by Grinding Mode: Wet Ball Mill vs Dry Ball Mill
This is the most commonly used classification method in actual production, with completely applicable industries:
- Wet Ball Mill: It adopts water-assisted grinding, with low dust, uniform finished particle size and good fluidity. It is widely used in metal ore beneficiation such as gold ore, iron ore, copper ore and lead-zinc ore, and is the mainstream equipment of mineral processing plants.
- Dry Ball Mill: It does not add water during grinding, suitable for materials that are not resistant to water and need dry powder finished products, such as quartz sand, cement raw materials, coal gangue and ceramic raw materials, and is mostly used in building materials and chemical industries.
Classified by Discharging Mode: Overflow vs Grate Discharge Ball Mill
This is a classification method commonly used in mineral processing:
- Overflow Ball Mill: Simple structure, low failure rate, suitable for fine grinding operation. The finished fineness is high, which is very suitable for small and medium-sized mineral processing lines with high fineness requirements.
- Grate Discharge Ball Mill: Fast discharging speed, avoiding over-grinding of materials, large processing capacity, suitable for coarse grinding and large-output production lines, and widely used in large-scale stone processing and ore primary grinding.
Classified by Structure Size
It can be divided into short-cylinder ball mill, long-cylinder ball mill and conical ball mill. Short-cylinder models have large single-hour output, suitable for mass production; long-cylinder models have more sufficient grinding and higher finished product precision.
Classified by Use Scenario
Including industrial continuous production ball mill and laboratory small batch ball mill. The equipment provided by ANDAMINE is all industrial large and medium-sized models, focusing on meeting the continuous production needs of mining and building materials enterprises.

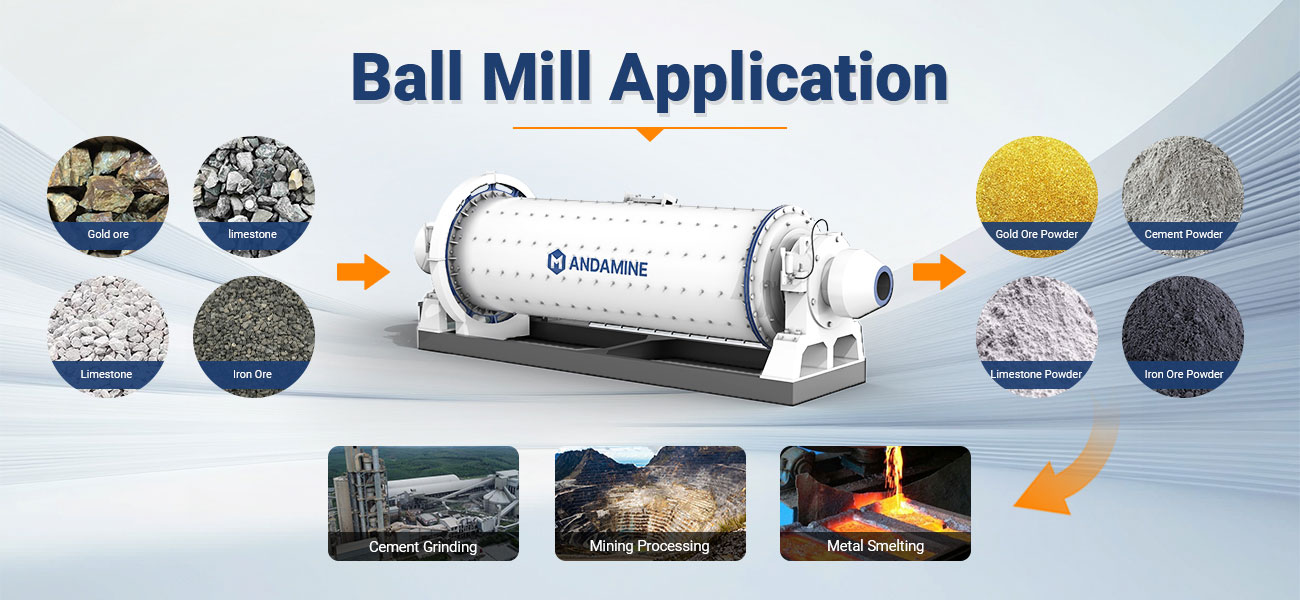

Wide Application of Ball Mill in Crushing and Grinding Industry
Different types of ball mills match distinct production fields, so we summarize all mainstream application industries in this chapter. With strong adaptability to materials and flexible finished fineness adjustment, ball mills cover almost all fields of ore processing, building materials production and construction waste recycling, and are core supporting equipment of crushing production lines.
Metal Ore Beneficiation Industry
In gold, iron, copper, manganese and other metal ore processing, ball mills are essential equipment before flotation and magnetic separation. The ore crushed by jaw crushers and cone crushers is ground into fine powder by ball mills, so that valuable metal minerals are fully dissociated from gangue minerals, improving mineral recovery rate. Most of ANDAMINE’s overseas mining projects in Malaysia, Philippines and Pakistan are equipped with matching ball mill supporting schemes.
Solid Waste Recycling Industry
With the improvement of global environmental protection requirements, construction waste, coal gangue, mineral slag and other solid wastes are increasingly recycled. The ball mill can grind crushed solid waste materials into reusable powder, which is used for road foundation filling and building brick production, realizing resource reuse and conforming to environmental protection production standards.
Building Materials and Stone Processing Industry
For limestone, granite, basalt, quartz sand and other building stones, ball mills can process granular aggregates into high-standard stone powder and fine sand. It is widely used in cement production, concrete raw materials and high-end construction aggregate processing, making up for the fineness defect of traditional sand making machines.
Chemical and New Material Industry
It is suitable for fine grinding of talc, calcite, fluorite and other non-metallic minerals, providing high-purity fine powder raw materials for chemical industry, ceramic manufacturing and new material processing, with wide industrial coverage.
Core Technical Parameters and Performance Advantages of ANDAMINE Ball Mill
After learning the applicable fields of ball mills, we shift focus to ANDAMINE’s exclusive equipment performance. As a professional mining and crushing equipment manufacturer with 14 years of production experience, ANDAMINE’s ball mill products have been optimized and upgraded in terms of power, capacity, energy consumption and adaptability, with more stable performance than traditional equipment.
Key Parameter Range
ANDAMINE supports full-model customization to meet the production needs of small, medium and large production lines:
- Production capacity: 4.5–306 t/h, covering small test production and large-scale industrial continuous production
- Feed particle size: ≤25mm, perfectly matching the discharge particle size of medium and fine crushing equipment
- Finished fineness: Adjustable from 0.074mm to 0.4mm, flexible parameter adjustment
- Power configuration: 155–2000kw, supporting customized voltage standards for different countries
Unique Product Advantages
- Energy-saving and low consumption: Equipped with variable frequency drive system, which can adjust the operating speed according to material volume, reducing ineffective power consumption by 20%-30% compared with traditional models.
- Durable and low failure: The overall wear-resistant structure design and high-quality accessories greatly reduce equipment failure rate, and the service life of vulnerable parts is increased by more than 35%.
- High automation: It can be connected with the automatic control system of the crushing production line, realizing unattended operation, reducing labor costs.
- Strong customization: According to customer materials, output and site conditions, we provide exclusive wet/dry type, overflow/grate type matching schemes.
| Model | Rotate Speed (r/min) | Grinding Media Weight (T) | Feed Size (mm) | Discharge Size (mm) | Capacity (t/h) | Motor Power (kW) | Weight (T) |
|---|---|---|---|---|---|---|---|
| Φ1830×4500 | 25.4 | 15 | ≦25 | 0.074-0.4 | 4.5-12 | 155 | 35.5 |
| Φ1830×7000 | 24.1 | 23 | ≦25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 |
| Φ2100×3000 | 23.7 | 15 | ≦25 | 0.074-0.4 | 6.5-36 | 155 | 34.8 |
| Φ2100×4500 | 23.7 | 24 | ≦25 | 0.074-0.4 | 8-43 | 245 | 42 |
| Φ2200×4500 | 21.5 | 27 | ≦25 | 0.074-0.4 | 9-45 | 280 | 51.8 |
| Φ2200×7500 | 21.7 | 35 | ≦25 | 0.074-0.4 | 15-30 | 380 | 64.8 |
| Φ2400×3000 | 21 | 23 | ≦25 | 0.074-0.4 | 7-50 | 245 | 58 |
| Φ2400×4500 | 21 | 30 | ≦25 | 0.074-0.4 | 8.5-60 | 320 | 69 |
| Φ2700×4500 | 20.7 | 48 | ≦25 | 0.074-0.4 | 12-90 | 480 | 102 |
| Φ3200×4500 | 18 | 65 | ≦25 | 0.074-0.4 | 25-120 | 630 | 137 |
| Φ3600×4500 | 17 | 90 | ≦25 | 0.074-0.4 | 25-140 | 850 | 158 |
| Φ3600×6000 | 17 | 110 | ≦25 | 0.074-0.4 | 25-160 | 1250 | 175 |
| Φ4000×6000 | 16.9 | 146 | ≦25 | 0.074-0.4 | 65-248 | 1600 | 218 |
| Φ4500×6400 | 15.6 | 172 | ≦25 | 0.074-0.4 | 54-306 | 2000 | 280 |
Professional Ball Mill Selection Guide for New Projects
With a full grasp of technical indicators and strengths, you can start to learn how to select ball mills for your own plant. Many customers will face the problem of model selection when purchasing ball mills. Blindly choosing large or small equipment will lead to idle equipment or insufficient output. The following selection standards can help customers quickly confirm the most suitable model.
Confirm Production Demand First
Determine the hourly output and daily working hours of the production line, and select the ball mill model with matching capacity to ensure that the grinding link is synchronized with the front-end crushing output and avoid production line disconnection.
Confirm Material Characteristics
- High-hardness: such as granite, basalt and iron ore: select grate discharge ball mill with strong impact resistance and large output.
- Medium and low hardness: such as limestone and construction waste: select overflow ball mill with fine grinding effect and low energy consumption.
- Water-deficient or dry powder production: dry ball mill; mineral beneficiation projects: prefer wet ball mill.
Match Front-End Crushing Equipment
The feeding particle size of the ball mill is limited, so the particle size of the front-end crusher must meet the feeding standard of the ball mill. ANDAMINE’s professional team will uniformly configure jaw crushers, cone crushers and ball mills according to the overall process to ensure the best matching effect of the whole production line.

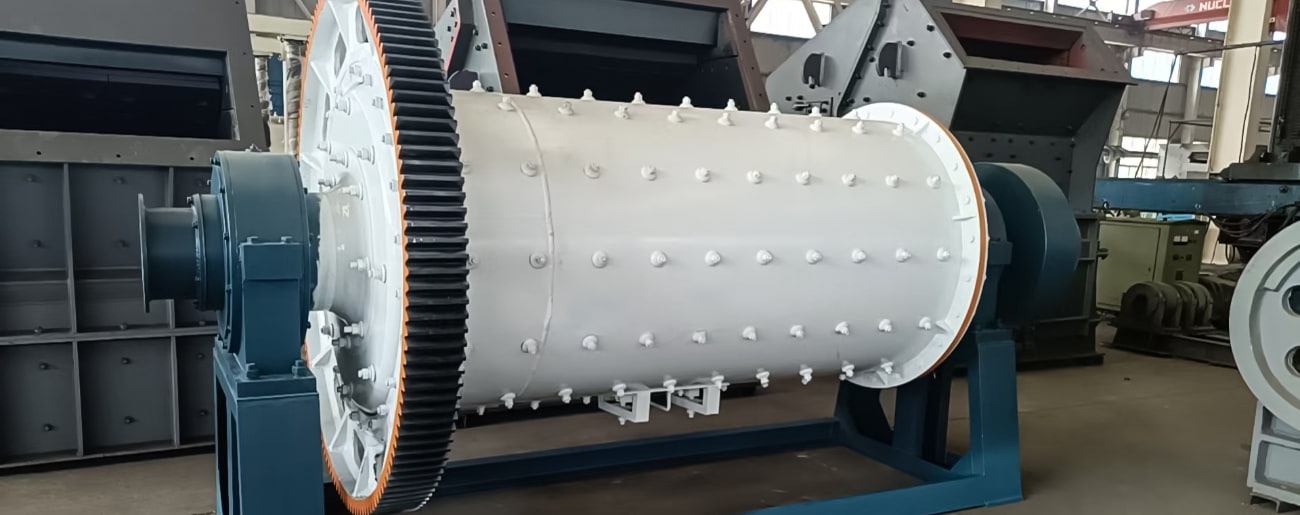

ANDAMINE Export Ball Mill Projects With Factory Photos
After mastering ball mill classification, parameter selection and matching schemes for crushing lines, you may want to refer to real delivered projects to judge whether our equipment can match your production demands. All cases listed below are authentic ANDAMINE export orders with real factory photos, complete technical indicators, local project backgrounds and post-delivery operation feedback, covering cement dry grinding, small gold beneficiation and large-scale gold ore processing sectors.

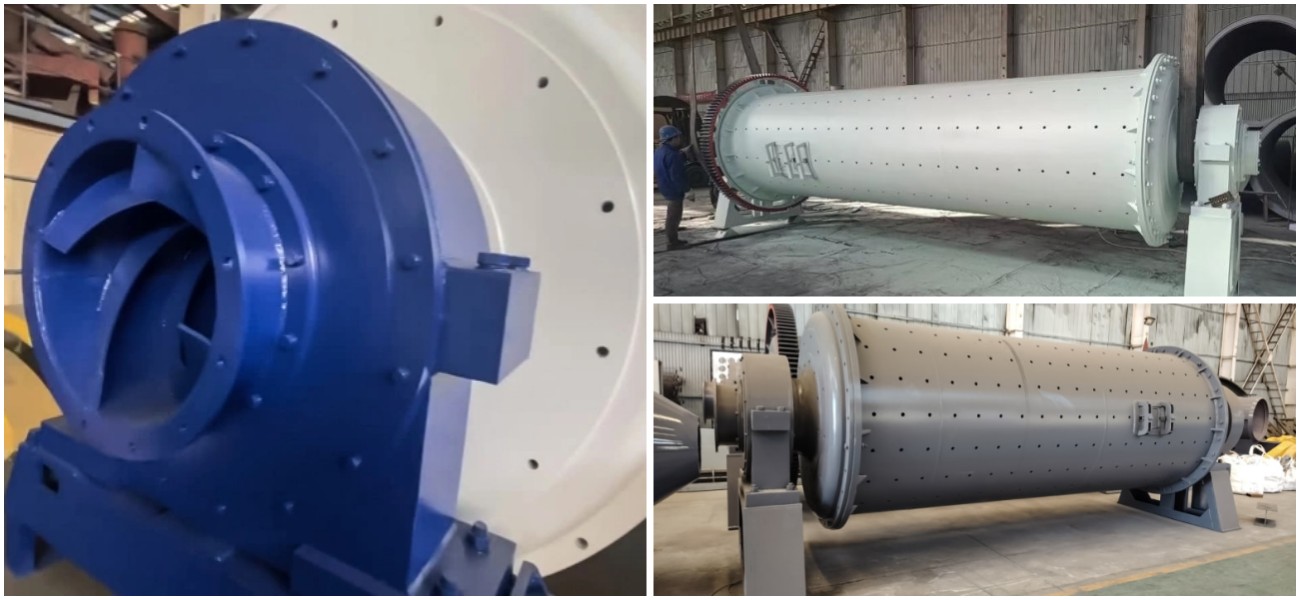

12.5t/h Limestone Dry Ball Mill for Indonesia Cement Plant
- Custom Model: Dry overflow ball mill dedicated to limestone powder processing
- Processed Raw Material: Low-hardness limestone ore
- Target Finished Powder Size: 200 mesh ultra-fine stone powder
- Application Field: Raw material grinding for local cement manufacturing plant
- Exact Project Location: Papua Barat, Indonesia
- Delivery Schedule: November 2024, finished assembly in factory
- Customer Needs & Solution: The humid, water-short local environment rules out traditional wet grinding. ANDAMINE delivered a tailored dry grinding solution with optimized wear-resistant liners and graded steel balls, delivering stable, uniform 200-mesh finished powder.
- After-sales Service: We provided professional remote installation guidance and full sets of spare parts, ensuring long-term stable operation in remote local mining areas.

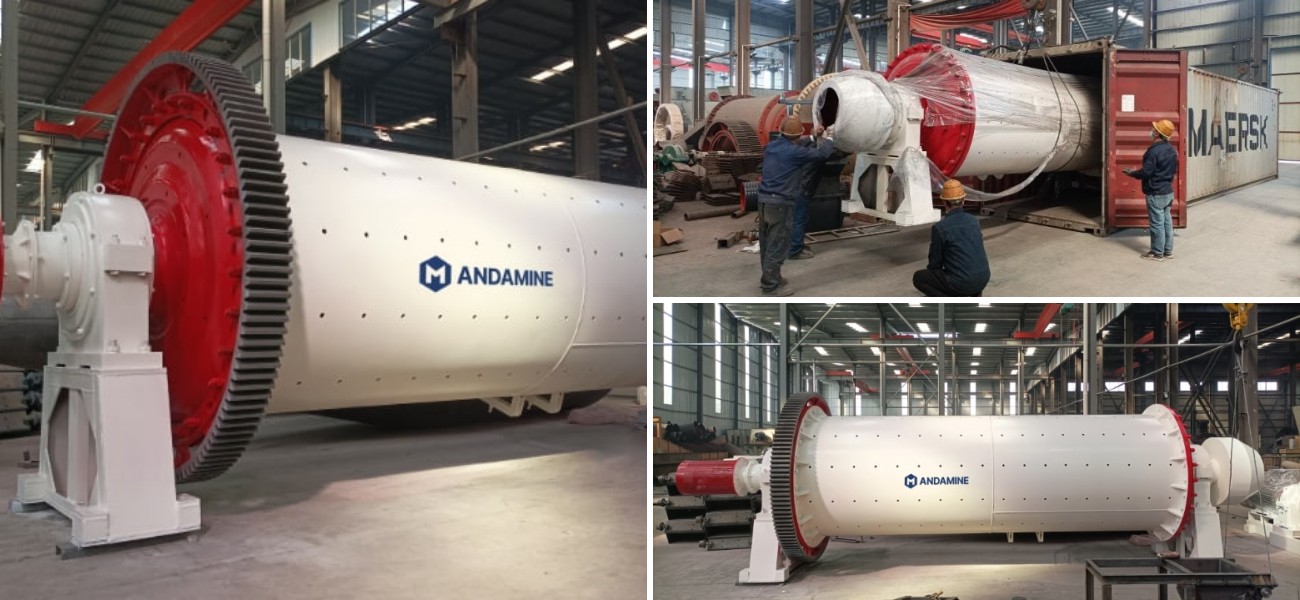

5t/h Wet Grate Discharge Ball Mill for Small Gold Ore Beneficiation Plant
- Custom Model: Compact small wet grate discharge ball mill
- Processed Raw Material: Low-grade rock gold ore
- Grinding Working Mode: Water-assisted continuous wet grinding
- Application Field: Pre-grinding process before gold flotation extraction
- Operation Record: Officially put into full production in November 2022, continuous stable operation for years
- Customer Needs & Solution: The client’s old grinding equipment suffered severe over-grinding and low gold recovery. Our grate discharge design speeds up discharging, eliminates over-grinding and improves mineral separation efficiency.
- Operation Effect: After equipment upgrading, the plant’s power consumption dropped by 22%, while the gold recovery rate increased by over 11%, achieving stable and cost-effective production.

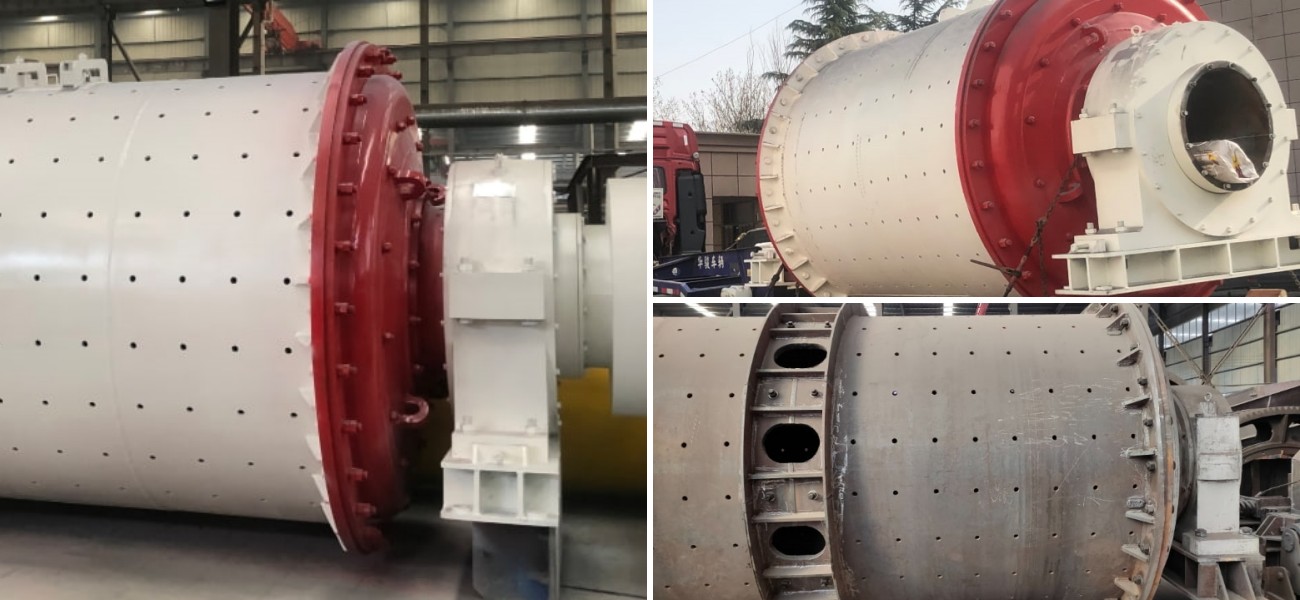

40t/h Large Wet Ball Mill for High-Yield Hard Rock Gold Ore Processing Line
- Custom Model: Heavy-duty industrial wet overflow ball mill
- Rated Stable Capacity: 40 tons of raw hard gold ore per hour
- Processed Raw Material: High-hardness rock gold ore with large gangue rock content
- Grinding Media: Multi-size graded high-hardness forged steel balls
- Grinding Working Mode: Continuous wet grinding matched with spiral classifier
- Application Field: Large-scale open-pit gold mineral separation plant
- Delivery State: Fully assembled machine fixed on flat truck before container loading for export
- Customer Needs & Solution: For large open-pit gold mine high-yield and automatic production demands, we equipped thickened wear-resistant liners and graded large steel balls to strengthen hard ore grinding performance.
- Complete Line Matching: This is a full turnkey crushing and grinding solution, including jaw crusher, cone crusher, ball mill and electric control system, realizing fully unmanned automatic production.
Core Consistent Advantages of All ANDAMINE Export Ball Mill Projects
From the three authentic export cases covering cement dry grinding, small gold beneficiation and large-scale hard rock gold processing, we can conclude the universal strengths of ANDAMINE ball mill solutions for global mine investors:
Full Customization Support:
We design dry/wet, grate/overflow ball mills according to local ore characteristics, water resource availability and factory space limitations.
Long Stable Service Life:
Long Stable Service Life: High-quality wear-resistant spare parts reduce frequent maintenance and unexpected production shutdown losses.
Perfect Compatibility:
All ANDAMINE ball mills match our jaw, cone and impact crushers seamlessly to build integrated crushing-grinding closed circuits.
Global Full-Cycle After-Sales:
Remote online technical guidance, complete spare parts supply and optional overseas engineer on-site commissioning service for every exported project.
After reviewing these real factory delivery and long-term operation cases, we will further sort out standardized daily operation specifications, regular inspection standards and quick fault elimination tips, to help you extend your ball mill service life and cut unnecessary operating costs.
Daily Maintenance, Common Faults and Troubleshooting of Ball Mill
Scientific daily maintenance can effectively extend the service life of the ball mill and reduce production failures. Targeted troubleshooting can quickly solve on-site operation problems and ensure continuous and stable production.
Daily Maintenance Specifications
- Lubrication maintenance: Regularly check the lubricating oil of bearings and reducers, replace lubricating oil regularly, and avoid equipment wear caused by lack of oil.
- Vulnerable parts inspection: Regularly detect the wear degree of liner and steel balls, and supplement or replace grinding media in time to ensure grinding efficiency.
- Cleaning and finishing: Clean the residual materials inside the cylinder after shutdown every day to avoid material caking affecting subsequent grinding quality.
- Operational parameter monitoring: Real-time monitor current, noise and temperature during operation, and stop the machine for inspection in case of abnormal conditions.
Common Faults and Troubleshooting
- Insufficient output and coarse finished particles: The grading of steel balls is unreasonable or the feeding volume is too large. Solution: Adjust the proportion of grinding media and control uniform feeding.
- Abnormal noise inside the cylinder: The liner is loose or foreign matter enters the cylinder. Solution: Stop the machine to check and fasten or clean foreign matter in time.
- Motor overheating and overload: Long-term overloaded operation or blocked materials. Solution: Reduce feeding volume and clean blocked materials.
- Discharging blockage: Excessive moisture or excessive feeding. Solution: Adjust material moisture and control feeding speed.
Why Choose ANDAMINE Ball Mill for Your Crushing Project?
After learning about equipment maintenance, fault handling and real global export projects, we summarize the comprehensive strengths of cooperating with ANDAMINE for your grinding equipment investment. As a professional environmental-friendly mining equipment manufacturer in China, ANDAMINE has provided more than 150 customized crushing and grinding overall solutions for global customers, with professional technology, reliable quality and perfect after-sales service system.
Factory Direct Sales Without Middlemen
We have our own factory and professional R&D team, all equipment is directly supplied by the factory, effectively reducing customer procurement costs, and ensuring equipment quality from the source.
Rich Global Project Service Experience
We have successfully launched crushing and grinding plant projects in Indonesia, Malaysia, Philippines, Pakistan, Uzbekistan, UAE and other countries, with rich overseas project implementation experience, and can accurately adapt to local site conditions, climate and production standards.
Perfect Pre-sales and After-sales System
Provide free pre-sales project design, equipment selection and budget analysis; support on-site installation, commissioning and staff training; arrange professional after-sales personnel to solve equipment operation problems online and offline for a long time.
Customized Turnkey Solution
We can provide complete turnkey projects including crushing equipment, grinding equipment, supporting auxiliary equipment and production line layout design, helping customers quickly complete project construction and put into production.
The ball mill, as the core fine grinding equipment in the crushing and grinding process, directly determines the finished product quality and overall production efficiency of the entire production line. Choosing a high-quality, energy-saving and durable ball mill and matching a reasonable full-process crushing layout is the key to improving your mine project’s long-term economic benefits.
If you have ball mill model selection, complete crushing-grinding production line configuration or customized project quotation demands, please contact ANDAMINE professional mining engineers at any time to obtain free exclusive process layout drawings and the latest equipment price list.
