Why Urban Construction Waste Management Is Changing

Urban construction waste management is changing as demolition and redevelopment projects become more frequent in modern cities. Unlike earlier times when waste appeared in separate and limited events, today it is generated in a steady and continuous way. This puts more pressure on how materials are collected, transported, and processed efficiently, especially when speed and on-site handling become critical factors.

How Urban Construction Waste Is Evolving

Urban construction waste is changing not only in quantity, but also in how it is generated, composed, and managed. These changes are gradually making traditional handling methods less efficient, especially in dense urban environments.

Mobile Crushing Plants as a New Processing Approach

Mobile crushing plants introduce a shift in construction waste management by moving processing activities closer to demolition and construction sites. This changes the traditional model where all waste must be transported to centralized facilities before treatment.

How On-Site Resource Recovery Works

On-site resource recovery converts construction waste into usable materials directly at or near demolition sites. Instead of relying on external recycling facilities, the process is completed within a localized workflow that supports faster material reuse within the same project environment.

The core principle of on-site resource recovery is processing and reusing materials where they are generated. By turning construction waste into reusable aggregates directly at or near demolition sites, the system reduces transportation, shortens processing time, and supports faster material reuse within the same project environment.

How On-Site Processing Changes Construction Workflows

Traditional construction waste management typically follows a multi-stage process in which demolition waste is transported to external recycling facilities before being processed and shipped back for reuse. This approach involves repeated loading, hauling, unloading, and coordination between different locations, increasing both material movement and workflow complexity.

By contrast, on-site processing integrates crushing and recycling directly into the construction environment. It simplifies the overall workflow by reducing external dependencies and allowing recovered materials to be reused much closer to where they are generated.

Economic Logic of On-Site Resource Recovery

On-site resource recovery reshapes the economic structure of construction waste management by reducing unnecessary material movement, lowering dependency on external processing systems, and improving overall resource utilization efficiency throughout the project lifecycle.

Key Application Scenarios for Mobile Crusher Plants

Mobile crusher plants are most effective in projects where large volumes of construction waste are generated on-site and material handling must be completed within limited space or time conditions. Their value varies depending on project type and operational constraints.

The Future of Construction Waste Recycling Systems

Construction waste recycling is evolving toward a distributed, mobile-driven, and hybrid system that improves efficiency and flexibility in material recovery.

Conclusion: A Shift Toward Circular Construction Waste Systems

Cities are gradually moving from traditional disposal-based approaches toward circular systems where construction materials are recovered and reused within continuous project cycles. This shift reflects a broader change in urban development, where waste is increasingly treated as a recoverable resource rather than a final output.

Mobile crushing plants support this transition by enabling on-site processing and making material reuse more immediate within construction environments. This helps shorten material recovery cycles and improves how construction waste is reintegrated into new projects.

The post On-Site Resource Recovery: How Mobile Crushing Plants Reshape Urban Construction Waste Management appeared first on ANDAMINE.

Challenges in the Transformation of the Crushing Industry and the Rise of Modular Design

In industries such as sand and gravel aggregates, mining, and construction waste recycling, traditional fixed crushing production lines are facing unprecedented challenges. Shorter project cycles, increasingly stringent environmental regulations, frequent changes in operating conditions, and a rise in cross-regional mobile operations have placed demanding requirements on the flexibility of crushing equipment.

4 Key Challenges in Traditional Crushing Operations

Modular Design: A Technological Revolution in the Crushing Industry

Modular design transforms traditional crushing operations by breaking down the crushing system into standardised, interchangeable functional modules, enabling rapid “plug-and-play” configuration. Its core advantages are as follows:

The successful application of modular design is not merely a matter of breaking down the structure; rather, it is a systematic engineering process underpinned by core modules such as structural design, chassis systems, intelligent control and powertrain optimisation. Below, we will examine each of these key modules in turn.

Modular Design: High Integration

Once traditional crushers are installed, it is nearly impossible to alter their functional attributes without undertaking massive engineering modifications. In contrast, the core philosophy of modular design is to make crushing equipment as flexible as toy bricks.

Rapid Relocation and Stable Load-bearing Capacity

The very concept of “mobility” in a mobile crushing plant directly determines its return on investment (ROI). The ability to ensure both rapid relocation and stable operation is the true test of the technical excellence of modular crushing equipment.

Intelligent Control and Material Conveyance

Modular hardware requires an equally intelligent software system to drive it and ensure production continuity. Through the integration of the Industrial Internet and smart sensing technologies, crushers are evolving from “passively operated machines” into “self-regulating intelligent systems.”

Remote Monitoring and IoT: Lifecycle Data Empowerment

In the era of modular production, the physical boundaries of equipment are broken down, and data serves as the strongest bond between the equipment and the user. Thanks to IoT technology, equipment maintenance is no longer reactive.

Structural Vibration Damping and Maintenance-Free Operation

Modular crushing equipment generates significant dynamic loads during operation. The key to achieving high equipment uptime lies in using innovative structural designs to mitigate mechanical fatigue caused by vibration and minimize routine maintenance requirements.

Intelligent Protection: Safeguarding the Core Equipment

Various mixed materials—particularly those from construction waste recycling and mining tailings—often contain non-crushable metal objects such as scrap rebar, shovels, and drill bits (commonly referred to in the industry as “metal debris”). If these high-hardness metals enter the crushing chamber (especially in cone crushers), they can cause catastrophic damage to the main equipment.

Guide to Selecting and Applying Modular Crushing Plants

Three Key Factors for Selection: The Key to Meeting Requirements

Next, I will share with you several flexible configuration solutions for common modular combinations, to help you choose the right configuration and achieve cost savings and increased efficiency.

Flexible Configuration Solutions for Modular Combinations

As global demands for resource efficiency and environmental standards continue to rise, crushers are undergoing a technological evolution from ‘heavy, cumbersome machinery’ to ‘high-precision, intelligent mobile equipment’. Through technological innovations such as standardised modules, intelligent control systems and flexible mobile chassis, Andamine mobile crushing plant achieves a perfect balance between rapid assembly and disassembly and adaptability to multiple scenarios, providing the crushing industry with efficient, flexible and intelligent solutions.

In the future, with the deep integration of technologies such as artificial intelligence, the Internet of Things and new energy sources, modular crushing plants will evolve towards greater intelligence, environmental sustainability and efficiency. They will provide robust support for sectors including the recycling of construction waste, intelligent mining and infrastructure development, propelling the crushing industry into a new phase of high-quality development.

The post The Rise of Modular Design: How Do Crusher Plants Achieve Rapid Assembly and Multi-Scenario Adaptation? appeared first on ANDAMINE.

A New Business Opportunity in Zimbabwe

As a first-time investor in the construction materials sector, the customer aimed to build a reliable aggregate supply business based on local granite resources. His plan focused on serving multiple downstream applications, including ready-mix concrete production and brick manufacturing, while keeping the operation flexible for future expansion.

However, lacking prior experience in quarrying and crushing operations, he needed to carefully evaluate equipment choices. The right solution would be critical to controlling investment risk and ensuring a smooth start-up process.

Challenges Behind the Opportunity

Although the market potential was promising, the customer faced several practical challenges.

Why the Customer Chose the APY4-57110S Mobile Crushing Plant

After comparing multiple solutions, the customer finally selected our APY4-57110S 4 in 1 mobile crusher plant. The integrated design of the plant played a major role in the decision-making process. Combining feeding, crushing, screening, and conveying functions into one mobile system, the plant offered a more compact and flexible solution compared with traditional fixed crushing lines.

Project Configuration:

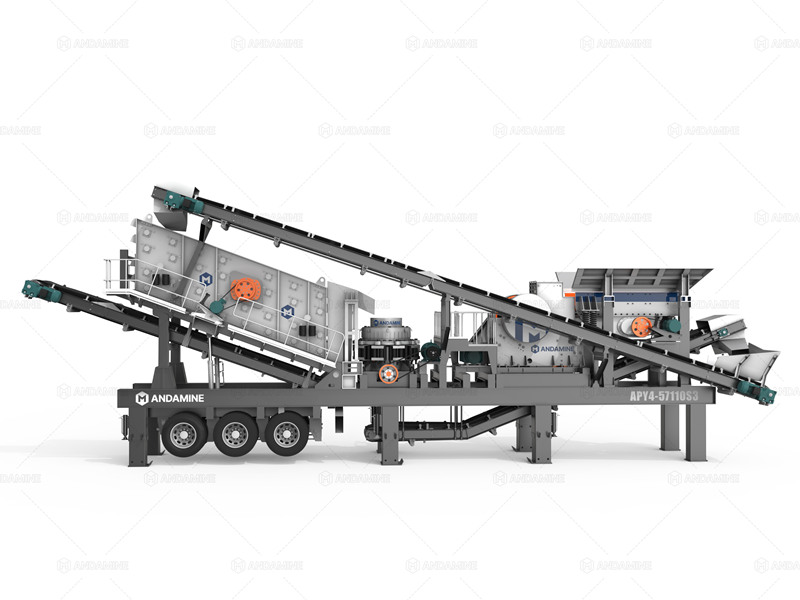

• Model: APY4-57110S 4 in 1 Mobile Crusher Plant (Feeder + jaw crusher + cone crusher + vibrating screen)
• Capacity: 80T/H
• Maximum Feeding Size: 450mm
• Final Product Sizes: 0-5mm, 5-10mm, 10-15mm, 15-22mm
• Raw Material: Granite

The equipment was specifically configured for granite crushing applications, ensuring both crushing efficiency and final aggregate quality. The mobile design also reduced installation complexity and shortened project preparation time. This was critical for accelerating production and improving return on investment.

From Transportation to Installation: Building Confidence Step by Step

Purchasing the equipment was only the beginning. The crushing plant needed to be transported across borders and installed within a planned timeframe. For a first-time customer, concerns about commissioning, operation, and equipment reliability created understandable pressure.

To ensure smooth project execution, we provided comprehensive technical support throughout the entire process, including:

• Equipment selection recommendations based on granite crushing conditions
• On-site installation assistance
• Commissioning and operational testing
• Operator training and production guidance

During installation and commissioning, our engineer worked closely with the customer to ensure each component operated correctly and production targets could be achieved safely and efficiently. For the customer, this support was extremely important. The process was not only about installing equipment, but also about gradually building confidence in running a completely new business.

Stable Production and Successful Market Entry

After installation and commissioning, the mobile crushing plant was successfully put into operation in Zimbabwe with stable performance. The equipment produced high-quality aggregates for ready-mix concrete, brick manufacturing, and general construction applications, ensuring reliable supply for local market needs.

With final sizes of 0–5mm, 5–10mm, 10–15mm, and 15–22mm, the customer was able to serve multiple applications and improve business flexibility. The stable operation also helped the customer successfully enter the building materials industry and build confidence for future expansion.

A Practical Example for Emerging African Markets

This Zimbabwe project demonstrates an important reality in emerging African markets: even first-time investors can successfully enter the aggregate production industry when equipment selection, project planning, and technical support are properly aligned.

The success of this project also highlights the advantages of mobile crushing solutions in developing regions:

• Faster installation
• Lower infrastructure requirements
• Flexible transportation
• Reduced investment risk
• Rapid production startup

For ANDAMINE, this project represents another successful mobile crushing plant application in Africa and further confirms the adaptability of integrated mobile crushing solutions in emerging markets. For more information or project consultation, feel free to contact us to discuss your requirements and get a tailored solution.

The post From Startup to Market Entry Success: Mobile Crushing Plant Project in Zimbabwe appeared first on ANDAMINE.

Rising Safety Pressure in the Mining Industry

Mobile crushing equipment plays a key role in modern mining, where continuous material handling and on-site processing are essential. As projects grow in scale and complexity, operating conditions have become more demanding, making safety management and regulatory compliance increasingly important in its use and development.

Mining Safety, Environmental, and Compliance Standards

Mining regulations in the global mining industry are becoming increasingly strict, covering safety protection, environmental performance, and operational transparency. These requirements are reshaping how mining activities are evaluated and approved, with a stronger focus on risk control and compliance across all stages of production.

Real Mining Site Conditions and Operational Challenges

Mining operations are carried out in highly variable and often extreme environments, where working conditions directly affect equipment performance, operational stability, and project continuity. Unlike controlled industrial settings, mining sites present multiple simultaneous challenges that must be considered in equipment planning and operation.

Engineering Safety and Environmental Design of Mobile Crushing Equipment

Mobile crushing plant operates under the demanding conditions described earlier, where material hardness, dust, and site constraints place significant pressure on performance. To address these challenges, modern design focuses on converting real operational requirements into practical engineering solutions that ensure safe and stable operation.

In modern mining applications, equipment is designed not only for efficiency but also for reliability, safety, and environmental control under continuous working conditions.

Safety Protection System Design

Environmental Control Engineering

Mechanical Structure and Power System Design

Digitalization and Smart Mining Systems

As mining operations become more complex and geographically dispersed, digital technologies are increasingly being integrated into equipment and production management. This shift does not replace mechanical functions but adds a digital layer that enhances visibility, control, and decision-making across the entire mining process.

These systems also provide the foundation for future technological development in the industry.

Application Scenarios and Crushing Equipment Selection Strategy

Mobile crushing equipment is widely used across different industries, but the selection approach should always be based on production targets, material characteristics, and site constraints. Understanding how these factors differ in real projects helps operators make more practical and efficient equipment decisions.

Mining Applications: High-Load Continuous Production Systems

• Production capacity and durability as primary priorities: Mining projects typically require equipment capable of handling continuous processing of hard and abrasive materials like iron ore over long operating cycles. In such cases, durability and throughput capacity are more important than mobility.
• Focus on operational stability under heavy load: Equipment selection should prioritize stable long-term operation, as unplanned downtime directly affects overall production efficiency in mining environments.
• Adaptability for long-term site changes: Since mining sites often develop and shift over time, equipment should be suitable for extended deployment in changing working zones.

Construction Waste Recycling: Flexible and Mobile Processing Needs

• Mobility as a key selection factor: Recycling projects often require equipment to move between multiple demolition or construction sites, making transport efficiency and relocation speed essential.
• Ability to handle mixed and unstable materials: Equipment should be selected based on its capability to process mixed materials such as concrete, bricks, asphalt, and steel-reinforced waste.
• Adaptation to limited urban space: Compact layout and flexible installation become important when working in dense urban environments with restricted space.

Quarry Operations: Stable Output and Cost Efficiency Focus

• Consistency of output quality: Quarry projects prioritize stable aggregate size and consistent production quality over long-term operation.
• Life-cycle cost considerations: Selection decisions should take into account energy consumption, wear part replacement frequency, and maintenance costs rather than only initial investment.
• Preference for fixed and stable installation: Since quarry sites are usually permanent, equipment layout can be optimized for long-term efficiency rather than mobility.

Remote and Overseas Projects: Logistics and Deployment Efficiency

• Fast installation and commissioning needs: Projects in remote or overseas locations often require equipment that can be quickly installed and put into operation, helping to minimize downtime during project startup.
• Transport and infrastructure constraints: Equipment selection should take into account transportation limitations, making modular and container-friendly designs more practical for long-distance shipping and on-site handling.
• Reduced reliance on external maintenance support: With limited access to service networks in remote areas, equipment reliability and ease of maintenance become key considerations in project planning and operation.

Industry Competition and Manufacturer Capability

Beyond technical performance, industry competition is increasingly defined by manufacturer capability and long-term service systems. The mobile crushing plant market is no longer driven only by individual product specifications, but by overall engineering strength, compliance capability, and global service support networks.

Future Development Trends in Mobile Crushing Equipment

As the industry evolves, mobile crushing equipment is moving toward smarter, cleaner, and more flexible solutions. These changes are mainly driven by low-carbon goals, automation, modular design, and sustainable mining practices, shifting the focus from simple upgrades to more fundamental system-level improvements.

Final Summary and Industry Outlook

Mobile crushing equipment is becoming more deeply integrated into modern mining systems, with a stronger focus on safety, efficiency, and operational reliability. The industry is steadily moving toward more intelligent and sustainable operations, driven by long-term performance optimization and system-level coordination.

For project planning and equipment selection, solutions should be evaluated based on specific site conditions, material characteristics, and production requirements to ensure stable and efficient operation.

The post Mobile Crushing Equipment in Modern Mining Safety and Compliance Systems appeared first on ANDAMINE.

However, great opportunities come with harsh challenges. Summer surface temperatures can soar above 50°C or even 60°C, accompanied by extremely dry climates and omnipresent sandstorms. This environment is a literal “purgatory” for any heavy machinery. For aggregate producers, mine owners, and contractors, maintaining continuous, stable, and efficient operation of crushing equipment under extreme heat is not just about project timelines—it directly determines the Return on Investment (ROI).

Dual Engines: Intense Demand for Crushing Equipment in the Middle East

The Middle East aggregate and mining machinery market is undergoing an unprecedented historical expansion. The demand here is not just about quantity; it is a comprehensive test of equipment versatility, mobility, and reliability.

Extreme Challenges: Fatal Threats of Heat and Dust to Crushing Equipment

While market demand is huge, the Middle East operating environment is recognized as one of the harshest in the world. For crushing equipment (such as jaw, cone, and impact crushers) that must withstand immense mechanical stress and impact, extreme heat and dust are “silent killers” leading to unplanned downtime and spiraling maintenance costs.

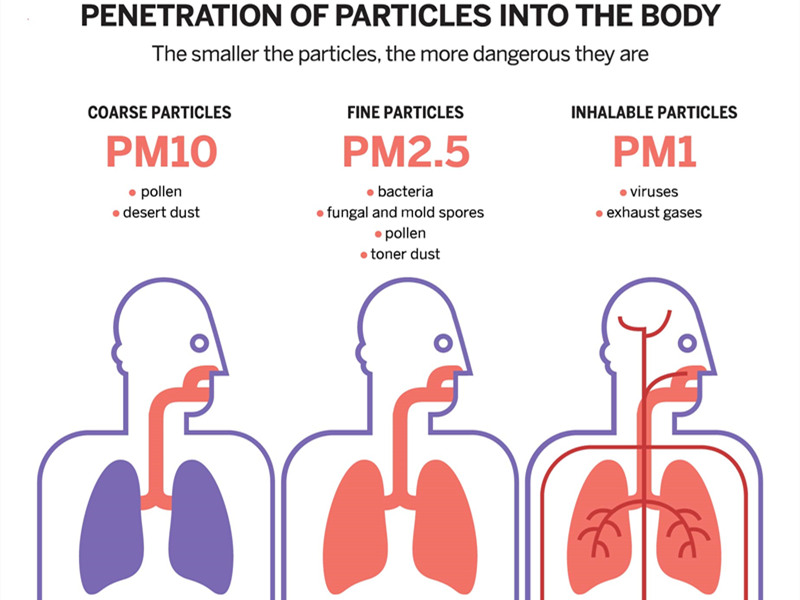

Furthermore, the crushing of aggregates is inherently a high-dust process. In water-scarce desert regions, traditional “flooding” dust suppression methods are neither economical nor feasible. Achieving environmental compliance and protecting worker health in water-short environments is a major challenge for local operators.

Andamine Industry – Leading Crushing Technology

Facing extreme heat, high dust, water scarcity, and complex post-war conditions, Andamine combines years of technical expertise with world-leading intelligent technology to deeply customize equipment for mobility, stability, and environmental adaptability.

Andamine Crushing Solutions: Built for the Harshest Conditions, Designed for Highest Returns

With years of experience in the global mining and aggregate equipment market, Andamine deeply understands the pain points of Middle Eastern customers. We provide more than just a single machine; we offer a complete “armor-grade” crushing system capable of defying extreme climates and adapting to complex reconstruction conditions. Whether building super-cities in the scorching desert of Saudi Arabia or recycling debris in the ruins of Syria, Andamine crushing plant equipment demonstrates superior vitality and profitability.

Partner with Andamine to Open a New Chapter in Middle East Construction

The infrastructure boom and post-war reconstruction in the Middle East represent a massive blue ocean for the global mining and engineering sectors. However, in extreme conditions, only crushing equipment that is both robustly durable and digitally intelligent can turn harsh challenges into sustainable productivity.

In the time-sensitive race of infrastructure development, extreme climates and inefficient equipment should not be a “black hole” eroding your project profits. Choosing Andamine is not just about introducing a heat-resistant machine; it is about introducing a robust long-term profit assurance system for your project.

Ready to upgrade your aggregate production line? Contact the Andamine Expert Team Today and tell us about your project location, material type (hard rock, soft rock, or construction waste), and output requirements. We will tailor an exclusive “heat-resistant, high-yield” crushing and screening solution for you.

The post Meeting the Middle East Infrastructure Boom: Crushing Equipment in Extreme Environments appeared first on ANDAMINE.

Why Crushing Plant Operations Are Traditionally Labor-Intensive

Crushing plant operations have long been labor-intensive due to limited automation, harsh environments, and continuous production demands. In most quarry and aggregate sites, operators must manage equipment monitoring, process adjustment, and maintenance coordination simultaneously, creating sustained operational pressure.

These factors collectively highlight the urgent need for intelligent, automated, and safer crushing systems.

Intelligent Control Systems: From Manual Supervision to Digital Operation

Mechanical and Structural Optimization: Reducing Physical Maintenance Effort

Mechanical and structural optimization in crushing equipment focuses on improving maintainability through better access design, standardized components, automated support systems, and enhanced material durability. These improvements reduce the physical effort required in maintenance activities while improving overall service efficiency and equipment reliability.

Mobile and Integrated Crushing Solutions: Streamlining Operational Workflow

Modern crushing operations increasingly rely on mobile deployment and system integration to improve site adaptability and process continuity. By combining equipment mobility with integrated processing functions, these solutions simplify on-site logistics, reduce intermediate handling stages, and create a more continuous production workflow across different project environments.

Environmental and Workplace Optimization Systems

In modern crushing plant development, improving operational efficiency is no longer the only focus. Increasing attention is also placed on workplace environment quality and operator health protection. Environmental and workplace optimization systems aim to reduce exposure risks and create safer, more comfortable working conditions for frontline personnel, independent of production performance improvements.

Operational Management Transformation: From Experience-Based to Standardized Systems

Operational management transformation focuses on building a standardized execution system across crushing plants by unifying operating procedures, shifting maintenance from reactive to planned models, introducing structured data-based maintenance records, and strengthening workforce training systems. This creates a more consistent and controllable operational framework across different production environments.

Economic and Operational Benefits: Linking Labor Reduction to Business Performance

As crushing plant operations transition toward standardized and system-driven models, the impact extends beyond operational improvements and directly influences cost structure, production efficiency, and long-term business competitiveness. These benefits are the result of system-level optimization rather than individual process upgrades.

Future Development Trends: Towards Fully Intelligent Crushing Systems

Future crushing systems will evolve toward higher intelligence, greater autonomy, and improved sustainability. These developments will reshape operations into more adaptive, efficient, and environmentally responsible production systems.

Conclusion: Transition Toward Human-Centered Crushing Operations

Crushing plants are steadily shifting from manual supervision to intelligent systems, from high-intensity labor to low-intervention operation, and from experience-based decisions to data-driven management. This transformation reflects a broader change in how crushing operations are structured, moving toward more stable and standardized production models.

Modern crushing systems are no longer focused only on output, but also on improving safety, efficiency, and working conditions at the same time. Overall, the industry is evolving toward a more balanced and sustainable approach that integrates productivity with better human-centered operation environments.

The post From High-Intensity Labor to Smart Operations: How Crushing Plants Improve Frontline Working Conditions appeared first on ANDAMINE.

Even for crushing production lines, the design, equipment selection and even investment costs for processing granite and basalt may differ by a factor of several times compared to those for limestone and marl. More crucially, standards, electricity prices, labour costs and environmental regulations in different countries and regions further amplify these differences. This article will provide an in-depth analysis of the fundamental differences in the configuration of crushing production lines designed for high-hardness rock and medium-to-low-hardness rock , offering industry professionals a scientific basis for equipment selection and a reference for process design.

What Are “Hard Rock” and “Soft Rock”?

In global engineering practice, we typically distinguish between “hard” and “soft” rocks based on the Mohs hardness scale (f-value), silicon dioxide (SiO₂) content, and the abrasion index (Ai).

Hard rock (high silica, high abrasiveness):

This primarily includes granite, basalt, diabase, quartzite, riverbed pebbles, etc. The SiO₂ content of such rocks is typically above 60%, with a Proctor hardness f > 10 and an abrasion index Ai > 0.5.

Characteristics: High compressive strength; causes extreme wear to equipment. If the wrong equipment is used, it may result in the disastrous situation of ‘a set of hammer plates being worn through in a matter of hours’, directly affecting the project’s cash flow.

Soft rock (medium to low hardness, brittle):

Mainly includes limestone, dolomite, shale, gypsum, coral rock, etc. These rocks have a lower SiO₂ content, with a Procton hardness (f) generally between 6 and 8, and an abrasion index (Ai) < 0.1. Characteristics: Highly brittle, low toughness; some deposits may contain clay or have high moisture content. The challenge with soft rock lies not in ‘difficulty of crushing’, but in controlling fines, preventing blockages, and ensuring the product particle shape meets the requirements of high-standard concrete.

Core Configuration of Hard Rock Crushing Production Lines

The key challenges in hard rock crushing lie in “high compressive strength” and “high abrasion”. Consequently, the configuration of the production line must be based on three core principles: impact resistance, wear resistance and high efficiency, with a three-stage or even four-stage crushing process generally employed.

1.Core Configuration:

“Jaw crusher for primary crushing + cone crusher for secondary and tertiary crushing + sand-making machine for shaping”. This is the most mainstream and reliable configuration for processing hard rock.

Primary Crusher:

Heavy-duty jaw crushers are the preferred choice. Their deep-chamber design accommodates large chunks of raw ore, whilst the critical liners must be made of high-manganese steel (such as Mn13) and undergo heat treatment, with a hardness of 55 HRC or higher to withstand immense compressive stress. The bearing housing must be a monoblock cast steel structure and equipped with an automatic lubrication system to withstand the continuous, intense impacts caused by hard rock. Feed size should be controlled between 500 mm and 800 mm. For extremely cold regions such as Northern Europe and Canada, a low-temperature hydraulic lubrication system is also required.

Medium and fine crusher:

Cone crushers must be employed. Due to impact crushers suffer extremely rapid wear of their hammers and liners when processing hard rock, making them suitable only for small-scale or cost-effective solutions. Cone crushers utilise a laminar crushing principle, squeezing the material through the oscillating motion of the moving cone. This generates a high and concentrated crushing force, effectively reducing the proportion of needle- and flake-shaped particles. There are single-cylinder hydraulic, multi-cylinder hydraulic or fully hydraulic cone crushers may be selected. The European and American markets tend to favour multi-cylinder hydraulic cone crushers, as they feature automatic iron protection and remote discharge opening adjustment, making them suitable for high-automation.

Shaping and sand-making machine:

A vertical shaft impact crusher (impact crusher) is configured. For high-grade concrete aggregates meeting EU (EN 12620) or US (ASTM C33) standards, the content of needle- and flake-shaped particles often exceeds limits after hard rock crushing, necessitating an additional shaping process. Its “stone-on-stone” or “stone-on-iron” operating principle effectively shapes the aggregate produced by the cone crusher, removing sharp edges to yield premium manufactured sand with a rounded particle shape and a well-graded particle size distribution. To cope with the high abrasiveness of hard rock, the sand-making machine must be fitted with a highly wear-resistant impeller, whilst the peripheral liners may be coated with a tungsten-cobalt alloy to significantly extend service life.

2. Auxiliary Configuration and Key Points

Flexible Configuration of Soft Rock Production Lines

The focus of soft rock crushing lies in process optimisation, cost control and ensuring consistent particle shape. Due to the friability of the material, crushing plant production line configurations are more flexible, with the option of two-stage or three-stage crushing.

1.High-efficiency, Cost-effective Configuration:

“Single-unit heavy-duty hammer crusher” or “jaw crusher + impact crusher”. For typical soft rocks such as limestone, small and medium-sized projects seeking a high return on investment often adopt these two configuration solutions.

2. High-Quality Sand Production Configuration

When a soft rock production line needs to produce high-quality manufactured sand simultaneously, a vertical shaft impact crusher and a more precise screening system can be added after the “jaw crusher + impact crusher” stage to form a three-stage closed-circuit crushing process. Taking limestone as an example, two-stage crushing or single-stage crushing. Limestone is brittle with low toughness, making the crushing process relatively straightforward; moreover, the impact crusher’s hammer plates perform optimally in this application. In India, Southeast Asia and the Middle East, single-stage crushing solutions are highly popular to reduce capital expenditure.

Summary: The common configuration for soft rock is a two-stage combination of “jaw crusher + impact crusher”, or a single-stage combination using a “heavy hammer crusher”. This setup requires fewer machines and has fewer potential points of failure, making it more suitable for regions with unstable power supplies or limited operational and and maintenance capabilities.

What are the Key Differences Between the Two Crushing Line Configurations?

Primarily a three-stage process: primary crushing + secondary and tertiary crushing + shaping.	Core Process	Primarily two-stage: primary crushing + secondary and tertiary crushing.
Cone crusher (mandatory), utilising layer compression crushing.	Core Equipment for Secondary and Tertiary Crushing	Impact crusher (preferred), utilising impact and collision for crushing.
Extremely high. Top-grade wear-resistant materials such as high-chromium cast iron and tungsten steel alloys must be used.	Equipment Wear Resistance Requirements	Moderate. Standard high-manganese steel is sufficient to meet most operational requirements.
Relies on subsequent shaping machines (sand makers) to optimise particle shape.	Final Product Shape Control	The impact crusher itself produces a good particle shape; shaping is an optional process.
Relatively high. Total power consumption is approximately 30% higher than that of a soft rock line with the same capacity.	Energy consumption	Low. The equipment offers low crushing resistance, resulting in relatively economical energy consumption.
High. Core equipment (cone crushers, high-wear-resistant components) is expensive, and the system is complex.	Investment costs	Medium to low. A wide range of equipment options is available, allowing for cost-effective solutions.
High. Wear parts require frequent replacement, and maintenance demands high technical expertise.	Operating and maintenance costs	Low. Equipment wears slowly, maintenance is straightforward, and downtime is minimal.
Granite, basalt, diabase, river pebbles.	Typical rock types	Limestone, shale, muddy sandstone, construction waste.

How Should the Screening and Environmental Protection Configurations be Set up for the Two Types?

New Trends in Rock Crushing for 2026: Smart and Low-Carbon Configurations

As we enter 2026, the simple “hard/soft” dichotomy no longer fully meets market demands. With the implementation of global carbon tariffs and fluctuations in aggregate prices, low-carbon and smart configurations have emerged as the new trend:

Recommendations for Selection and Key Decision-Making Points

When selecting a production line configuration, one must not simply “copy and paste” a standard solution, but rather conduct a systematic decision-making analysis:

So, what exactly is the difference between hard rock and soft rock crushing production lines? In short, it comes down to “abrasion”. Hard rock tests the wear resistance limits of equipment, requiring the laminating action of cone crushers to counter abrasion and the establishment of a robust spare parts supply chain; soft rock tests the limits of process fluidity, requiring the impact of impact crushers to pursue efficiency and the implementation of sophisticated dust and slurry treatment solutions.
For investors, there is no single “best” configuration; rather, there is only the solution that best suits their specific resource conditions, product market and investment strategy. As the aggregates industry moves towards large-scale, green and intelligent operations, a deep understanding of these fundamental differences and the implementation of scientifically tailored designs are key to project success, cost reduction, efficiency gains and sustainable development.

The post Differences in the Configuration of Hard Rock and Soft Rock Crushing Production Lines appeared first on ANDAMINE.

A shipment rejected at port because it fails to meet a single line item in a foreign technical standard. It is a costly and frustrating scenario, yet it plays out more often than you might think. In the global aggregates trade, technical specifications are not merely bureaucratic hurdles; they are the language of trust between you and your client. They dictate everything from material sourcing and processing costs to, ultimately, your profitability. To understand how these “rules” shape the global marketplace, we must first decode the world’s most influential standard systems.

Decoding Global Standards Systems – Your Passport to Major Markets

Before you ship a single ton of aggregate, you need to understand the technical language your client speaks. The world’s major markets operate on different foundational standards, and confusing ASTM with EN can be the difference between a sealed deal and a sealed container stuck in customs. Let’s unpack the two dominant global systems, then explore the critical regional specifications you cannot afford to ignore.

The International Heavyweights: ASTM vs. EN – Understanding the Core Logic

If you are exporting anywhere, you will encounter either the American or European system. They represent two different philosophies of specification, and knowing the distinction is your first competitive advantage.

ASTM International (American Society for Testing and Materials) standards are the de facto global benchmark for many projects, particularly those designed by American engineering firms or funded by international development banks. For concrete work, ASTM C33/C33M is your bible. It specifies everything from grading limits to the permissible levels of deleterious substances like clay lumps and friable particles. Think of it as the comprehensive rulebook for ensuring your material produces predictable, durable concrete. For masonry work, ASTM C144 takes over, setting stricter requirements for sand used in mortar.

On the other side of the Atlantic, the European Norm (EN) series governs access to the EU market and is widely adopted in regions with European influence. EN 12620 covers aggregates for concrete, with meticulous attention to fines content, resistance to fragmentation, and particle density. Then there is EN 13043, the go-to standard for aggregates in asphalt mixtures. Why does this matter to you? EN 13043 places a special emphasis on particle shape and surface texture—characteristics that directly impact the skid resistance and long-term stability of a road. If you are supplying material for a European-funded highway project, producing a “flaky” aggregate that meets basic concrete specs will fail this asphalt standard entirely.

Regional Gateways: The Keys to Localized Survival

Beyond the global giants, specific regional standards act as the non-negotiable gatekeepers for their respective markets. Ignoring them is not an option if you want to compete locally.

China’s GB/T Standards: To participate in the world’s largest construction market, you must master GB/T 14684-2022 for sand and GB/T 14685-2022 for gravel and crushed stone. These standards classify aggregates into Classes I, II, and III, which directly correlate to application suitability and price point. Have you encountered the MB value (Methylene Blue Value) ? This is a critical test within the GB/T framework. It is designed to determine if the fines in your manufactured sand are inert stone dust or harmful clay. A high MB value can disqualify your sand from high-grade concrete applications, no matter how perfect its gradation looks. Recent procurement tenders, for instance, explicitly demand that materials adhere to the Class I requirements of these GB/T standards, proving that these are not just academic classifications but active purchasing criteria.

Gulf Cooperation Council (GCC) Standards: Selling into the Middle East? You are playing by the rules of the GSO (GCC Standardization Organization). The GCC Certification (G-mark) is your mandatory passport for Saudi Arabia, UAE, Kuwait, Qatar, Oman, and Bahrain. But here is the critical layer: these standards are not just generic imports. They are increasingly adapted for the extreme local environment. The GSO is actively working with the American Concrete Institute (ACI) to develop a unified Gulf Building Code that adapts standards like ACI 318 to accommodate the region’s unique climate challenges. This means your aggregates must meet heightened requirements for durability against heat, sulfate attack, and perhaps most importantly, they must be sourced and processed with a quality management system that can withstand rigorous factory inspections and ongoing market surveillance. A GCC certificate is not just a test; it is a commitment to sustained quality control.

So, whether you are targeting the grading curves of ASTM C33, the particle shape demands of EN 13043, the MB value thresholds of GB/T 14684, or the rigorous quality system behind the G-mark, the principle is the same: your product must be engineered for its destination. But what happens when your client is not just following a national standard, but building a structure that defines a nation? This is where the game changes entirely, moving from compliance to precision engineering.

Mega-Project Specifications – Demonstrating Your “High-Precision” Capability

National standards establish the baseline for quality and safety—the foundation upon which all construction is built. But when a project carries a 100-year design life, withstands extreme environmental forces, or houses a nuclear reactor, the specifications extend far beyond these baselines. High-speed rail networks, hydroelectric dams, and sea-crossing bridges operate under additional layers of technical requirements tailored to their unique performance demands. Understanding these “beyond-code” specifications positions you not just as a supplier, but as a true engineering partner capable of delivering materials for the world’s most ambitious structures.

• High-Speed Rail
• Hydroelectric Dams
• Nuclear Power Plants & Sea-Crossing Bridges

High-Speed Rail: The “Millimeter-Level” Precision Demands

A train traveling at 350 kilometers per hour does not tolerate inconsistency. The concrete that carries it must be flawless, and the aggregates within that concrete must be engineered to tolerances that far exceed ordinary construction requirements. For projects like the Beijing-Shanghai High-Speed Railway, the specifications reflect this reality.

Particle Shape

Particle shape is paramount. While many national standards permit flakiness indices up to 15-20%, high-speed rail specifications typically demand flaky particle content below 10% . Why? Elongated or flat particles create weak points in the concrete matrix and reduce workability during pumping, introducing variability that becomes critical at high speeds. Your crushing circuit must be configured to produce perfectly cubical aggregates—a task typically requiring cone crushers combined with vertical shaft impactors for shaping.

Gradation Control

Gradation control becomes equally unforgiving. High-speed rail specifications demand continuous and stable grading curves, with coarse aggregates typically confined to the 5-20mm range and strict limits on each size fraction. The sand must fall within a narrow fineness modulus window of 2.6 to 3.0. This is not a “mine run” product; it requires dedicated screening systems and meticulous stockpile management to prevent segregation.

Cleanliness Requirements

Cleanliness requirements are equally stringent. Limits for clay content are set at approximately 0.5% for coarse aggregates and 1.5% for sand, with even tighter restrictions on clay lumps. Your washing and classification systems must operate at peak efficiency to consistently meet these thresholds.

Hydroelectric Dams: The “Century-Scale” Chemical Stability

If high-speed rail is about precision, dam construction is about patience—and paranoia. A dam is designed to hold back water for generations, and the greatest long-term threat is not structural overload, but a silent chemical reaction occurring inside the concrete itself.

Alkali-aggregate reaction (AAR) , specifically alkali-silica reaction (ASR), is the hidden enemy. When reactive forms of silica in your aggregate come into contact with alkalis from cement, they form a gel that absorbs water and expands, slowly cracking the concrete from within. For hydroelectric projects, this is existential. The RILEM (International Union of Laboratories and Experts in Construction Materials, Systems and Structures) Technical Committee 219-ACS has developed comprehensive recommendations specifically addressing this risk.

Recognizing the unique demands of water-retaining structures, RILEM has produced a Preliminary International Specification for dams and other hydro structures (AAR-7.3). This specification goes beyond the general recommendations for concrete (AAR-7.1 and 7.2) by providing guidance on how aggregate assessment must be combined with other design measures to minimize the risk of alkali-aggregate reaction damage in hydraulic structures. This means your material must not only pass reactivity testing but also be compatible with the specific binder systems and exposure conditions unique to each dam project.

Nuclear Power Plants & Sea-Crossing Bridges: Extreme “Safety Redundancy”

When failure is not an option, specifications become layered with redundancy. Nuclear power plants and major sea-crossing bridges represent the absolute pinnacle of material requirements, each with distinct technical priorities.

For nuclear projects, the scrutiny begins at the atomic level. Structural concrete used as biological shielding in nuclear power plants becomes radioactive after exposure to neutron radiation. Research has identified that three radionuclides—cobalt-60 (Co-60), europium-152 (Eu-152), and europium-154 (Eu-154)—account for up to 99% of total residual radioactivity in decommissioned concrete. The IAEA document RS-G-1.7 establishes clearance levels for these radionuclides at 0.1 Becquerel per gram. This means your aggregate source must be tested for trace amounts of cobalt and europium at parts-per-billion levels, using advanced techniques like neutron activation analysis. Recent Korean studies have derived similar clearance levels, with uranium concentrations as low as 0.0297 Bq/g being evaluated for regulatory compliance.

The procurement process reflects this intensity. Major nuclear projects mandate aggregates destined for nuclear island structures to carry the highest quality assurance ratings, with full traceability requirements spanning decades.

For sea-crossing bridges, the enemy is salt and time. Projects like Hong Kong-Zhuhai-Macao Bridge, designed for 120 years of service life, face relentless attack from seawater, sea fog, salt spray, tidal cycles, and wet-dry cycling. Research institutions have developed specialized technical solutions specifically for these conditions.

The technical approach is comprehensive. Engineers have established a dual-control design method for both strength and durability, achieving 95% assurance levels for concrete durability indicators. They’ve pioneered a new philosophy for cementitious material systems in marine environments, emphasizing aluminosilicate phases that improve pore structure and bind chlorides.

For large-scale prefabricated components like the pier structures of Xiamen Xiang’an Bridge, additional control measures apply. Concrete mix designs must balance resistance to chloride ion penetration with crack resistance, using low-heat Portland cement, moderate water-to-binder ratios, and high volumes of supplementary cementitious materials like fly ash and slag. Temperature control during curing becomes critical, as the heat of hydration in mass concrete can induce thermal cracking before the structure ever meets seawater.

The gap between a standard-compliant aggregate and one suitable for a nuclear reactor or a 120-year sea bridge is measured not in test results alone, but in understanding what those results mean for the structure’s lifespan. This brings us to the critical question: how does your existing operation—your crushers, screens, and classifiers—measure up against these escalating demands? And more importantly, how can you adapt?

From Specifications to Equipment – How Your Crushing Plant Meets the Challenge

Understanding the specifications is essential. But the real question is operational: can your equipment consistently deliver materials that meet these diverse and demanding requirements? The gap between a standard-compliant product and one ready for a nuclear island or a 120-year sea bridge is bridged not by intent, but by process design. Here is how the technical demands we have explored translate directly into equipment decisions, and what a truly capable operation looks like.

How Specification Differences Dictate Equipment Selection

Every standard we have discussed places unique demands on your production line. The equipment you choose must be capable of delivering specific outcomes, consistently.

• Particle Shape Control: When a specification demands flakiness below 10%—as high-speed rail projects do—your crushing circuit must prioritize cubical production. This typically requires a combination of cone crushers for primary reduction followed by vertical shaft impactors for shaping. Ordinary hammer crushers or jaw crushers alone will produce elongated flakes that fail these stringent requirements.
• Gradation Precision: ASTM C33 and EN 12620 both specify tight grading envelopes. Achieving these consistently demands high-efficiency screening systems with accurate cut points and the ability to blend multiple size fractions. Your screen media selection, screen angle, and feed distribution all become critical variables.
• Fines Control and Cleanliness: The MB value requirements of GB/T 14684 for Class I sand, or the clay limits of high-speed rail specifications, demand effective fines removal. This means integrating wet processing systems—log washers, hydrocyclones, or fine material screw washers—or advanced dry classification technologies that can separate harmful clays from valuable stone dust. The MB value test itself, performed at 600±60 RPM stirring speed with a 1L glass vessel, is the gatekeeper here.
• Chemical and Radiological Purity: For hydroelectric dams, you need aggregate sources proven non-reactive through accelerated mortar bar tests. For nuclear applications, you require radionuclide analysis capable of detecting cobalt-60 and europium-152 at levels below 0.1 Becquerel per gram. This is not equipment selection; it is quarry selection and ongoing material characterization.

Your Crushing Plant’s “Compliance Solution”

So what does a crushing operation capable of meeting this full spectrum of global standards look like? It is not about any single crusher machine, but an integrated approach to process design.

A truly capable plant integrates several essential functions into a seamless workflow:

• Crushing and Shaping: The core process must produce particles that are not just crushed, but engineered for shape. This means configuring your crushing stages to maximize cubical product while minimizing flaky and elongated particles.
• Size Optimization and Gradation Control: Screening must be precise and flexible. The ability to adjust gradation in response to changing project requirements—tightening a specification for a high-speed rail contract one month, then adjusting for a general concrete project the next—requires screening systems with quick-change media and accurate cut points.
• Stone Powder Control: For manufactured sand, controlling the fines fraction is critical. Whether your target is a low MB value for Chinese Class I sand or meeting the fines limits of ASTM C33, your plant must include effective classification—wet or dry—that can remove excess fines while retaining the beneficial stone dust needed for concrete workability.
• Intelligent Process Control: Meeting these specifications consistently requires more than good equipment; it requires control. Modern plants integrate automation that monitors key parameters—power draw, screen efficiency, material flow—and adjusts settings to maintain product quality even as feed conditions vary.

The equipment itself must be engineered for compatibility and reliable operation. When raw materials are processed through a well-designed system—from primary crushing through shaping, screening, and fines control—the final product emerges with the rounded shape, consistent gradation, and appropriate powder content that global standards demand. Systems that integrate these functions into a compact, efficient layout reduce material handling, minimize dust, and improve overall product quality.

From Compliance to Competitive Advantage

Navigating the world’s aggregate specifications can feel overwhelming. ASTM C33 for North America, EN 12620 for Europe, GB/T 14684 for China, IS 383 for India, the G-mark for the Gulf, and the bespoke requirements of nuclear and infrastructure megaprojects—each represents a potential barrier to entry or, if understood correctly, a pathway to premium markets. The distinction between a commodity supplier and a valued engineering partner lies in this understanding. It is not enough to know that a standard exists. You must understand what it measures, why it matters, and how your production process can deliver it consistently.

For every specification we have discussed—whether the MB value thresholds of GB/T 14684, the particle shape demands of EN 13043, the alkali reactivity requirements of dam specifications, or the radionuclide limits of nuclear concrete—the underlying principle is the same: your product must be engineered for its destination. The question, then, is not whether your operation can meet one standard today. It is whether your plant design, quality systems, and technical knowledge position you to meet the next standard, and the one after that, as your market expands.

What markets are you targeting? Whether your next project is across the border or across the ocean, understanding these specifications is your first step. The second is ensuring your production capability aligns with the demand. If you would like to discuss how your specific operation measures up against these global requirements, our team is here to help you navigate the path from compliance to competitive advantage.

The post The Global Aggregate Specifications Blueprint: How Can Your Product Conquer the World? appeared first on ANDAMINE.

Equipment designed for standard conditions may experience reduced efficiency, frequent breakdowns, or shortened service life under such harsh environments. This article offers practical guidance on selecting, configuring, installing, and operating crushing equipment to ensure reliable performance and longevity in high-altitude, extreme-cold, and other challenging environments.

Environmental Challenges Affecting Crushing Equipment Performance

Crushing equipment operating in remote or extreme environments faces multiple challenges that directly impact performance, reliability, and lifespan. Environmental factors such as altitude, temperature, and terrain should be carefully considered when selecting and configuring equipment.

Key Principles for Selecting Crushing Equipment in Special Environments

Selecting crushing equipment for harsh environments requires careful consideration of project requirements, material characteristics, and site conditions. Proper choices ensure operational reliability, reduced maintenance, and longer service life.

System Adaptations for Crushing Machines in Demanding Environments

Crushing machines operating in high-altitude, cold, or otherwise demanding environments should include targeted system adaptations to maintain performance and reliability. These adaptations focus on hydraulic, lubrication, and material handling systems, which are most sensitive to environmental extremes.

Installation and Commissioning Strategies for Harsh Environments

Proper installation and commissioning are critical to ensure crushing equipment operates reliably in high-altitude, extreme cold, or permafrost-affected sites. Environmental factors at the site should guide foundation design, protective measures, and test-run procedures.

Operation and Preventive Maintenance Strategies

Electrical and Control System Adaptation

Electrical and control systems are particularly vulnerable in high-altitude, cold, or extreme environments. Failures in these systems can halt production, create safety risks, and damage equipment. Adapting the design and operation of electrical systems is critical to maintain reliable and safe crushing operations.

Improving Energy Efficiency in High-Altitude and Cold Environments

Energy efficiency is a critical consideration for crushing operations in high-altitude, cold, or remote regions. Harsh environmental conditions can increase fuel consumption, reduce mechanical efficiency, and raise operational costs. By optimizing equipment configuration, insulation, and maintenance planning, businesses can maintain stable production while controlling energy use.

Industry Trends and Technological Developments in Crushing Equipment for Challenging Environments

The crushing equipment industry is shifting toward intelligent, energy-efficient, and environmentally responsible solutions, driven by market expansion, regulatory pressures, and technology innovation.

Conclusion and Recommendations

Crushing operations in high-altitude, extreme-cold, or other harsh environments demand careful planning, specialized equipment, and adaptive operational strategies. Key factors influencing performance include structural strength, hydraulic and lubrication reliability, electrical system resilience, and tailored installation methods.

By implementing environment-specific design choices, preheating and insulation measures, preventive maintenance schedules, and operator training, companies can maintain stable output, reduce downtime, and extend equipment lifespan. Adopting these best practices ensures that crushing plants remain efficient, safe, and durable even under the most challenging conditions.

The post Key Considerations for Selecting and Operating Crushing Equipment in High-Altitude and Extreme Cold Environments appeared first on ANDAMINE.

Why Collaboration Matters: A Global Perspective

Understanding the need for collaboration between aggregates and ready-mix concrete requires analyzing the shifts in the global industrial landscape.

In such a market environment, the relationship between aggregate producers and concrete plants is shifting from “ad hoc procurement” to “long-term collaboration.” Rather than renegotiating prices with every market fluctuation, companies can build stable partnerships through capacity synchronization and data sharing.

Redefining the Core Value of Collaboration

When collaboration moves from concept to practice, its value extends far beyond reducing transportation distances—it penetrates quality control and production organization.

Thus, the essence of collaboration is an upgrade of production methodology, not merely an adjustment of operational modes.

Digital Technology Driving Collaborative Upgrades

As collaboration deepens, traditional experience-based scheduling is insufficient. Digital technology becomes a critical enabler.

1. Data Integration as the Core of Collaboration

In digitally advanced markets, aggregate and concrete production data are interconnected. IoT-based remote monitoring systems allow real-time sharing of equipment status, output data, and maintenance cycles, enabling more precise production scheduling. Such transparency reduces unplanned downtime and makes the supply chain more predictable.

2. Continuous Production as a Key Metric

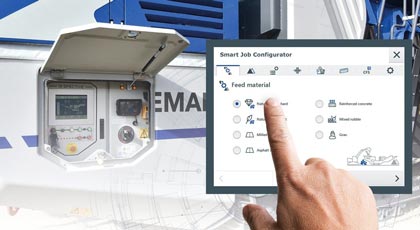

Continuous feed capability is essential in collaborative systems. Intelligent feeding systems adjust output speed according to concrete plant consumption, maintaining aggregates within optimal load ranges and preventing production interruptions due to supply gaps.

3. Mobile Equipment Enabling New Collaboration Scenarios

Project-based markets are reshaping the spatial form of collaboration. In Africa, Latin America, and Southeast Asia, Andamine three-axle mobile crushing and screening plant can rapidly relocate with projects, providing on-site aggregate production for temporary concrete plants. This approach significantly reduces transportation costs and increases project execution efficiency.

Digitalization and mobility are jointly redefining how collaboration is implemented in modern supply chains.

Upgrading Collaboration in a Green and Low-Carbon Context

With global carbon reduction targets advancing, the environmental benefits of collaborative production are increasingly evident.

By shortening transportation distances and optimizing material utilization, collaboration directly reduces carbon emissions. Additionally, energy-efficient motors further reduce per-unit energy consumption. Adopting Andamine comprehensive dust control solutions—from raw material spray cannons to negative-pressure dust collection—improves the work environment and ensures compliance with international environmental standards.

Thus, collaboration is not only an economic choice but also a sustainable development strategy.

Key Paths to Strategic Collaboration

Collaboration does not happen naturally—it requires systematic implementation. Global best practices suggest several essential steps:

From Industrial Collaboration to Ecosystem Integration

As the use of recycled aggregates increases and construction industrialization advances, the scope of collaboration continues to expand. In the future, aggregates, concrete, cement, waste management, and digital supply chain platforms will form a tightly connected industrial ecosystem. Within this system, companies are linked through data and production networks, jointly building new value chains.

In the era of refined, highly coordinated construction operations, relying on cost advantages in individual segments is no longer sufficient for long-term competitiveness. Only through collaboration—integrating quality, efficiency, and sustainability—can companies maintain stable growth in a complex and rapidly changing market environment. Intelligent, integrated, and eco-friendly crushing and screening solutions provide the essential foundation for supporting this transformation.

The post Strategic Collaboration between Aggregate Producers and Ready-Mix Concrete Plants: From “Neighbors” to “Partners” appeared first on ANDAMINE.
